SWT-NS900 Hot Wedge Welder for HDPE Geomembrane from 1.0 - 3.0 mm

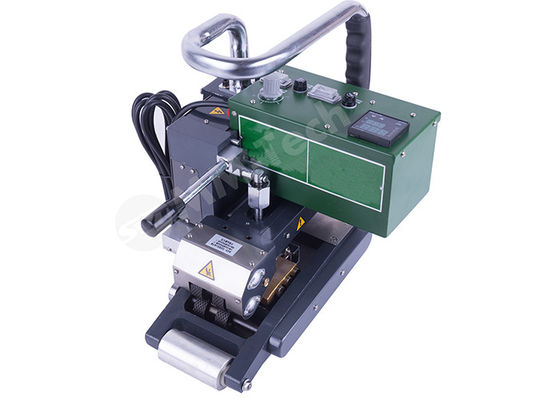

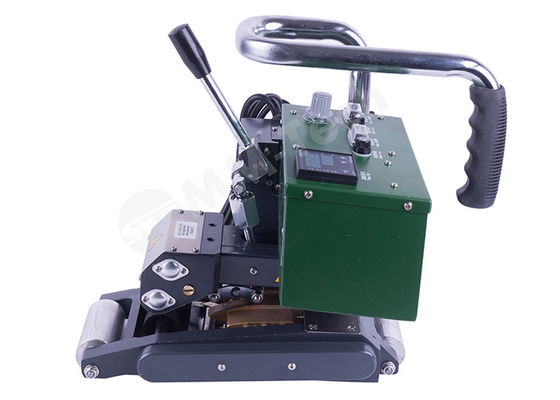

Large Image : SWT-NS900 Hot Wedge Welder for HDPE Geomembrane from 1.0 - 3.0 mm

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS900

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USS$1,000 - 2,700 / set
Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	Western Union; PayPal; T/T;
Supply Ability:	9,000 sets / per month

Contact Now

Detailed Product Description

Model:	SWT-NS900	Voltage:	220V/110V
Frequency:	50/60Hz	Power:	1800W
Net Weight:	13KG	Overlap Width:	12cm
Welding Speed:	0.5 - 5.0m / Min	Seam Width:	15mm*2, Interior Cavity 15mm
Welding Thickness:	1.0 - 3.0mm	WeldableMaterials:	PE PVC PVDF EVA ECB

Hot Wedge Welder Features

SWT-NS900 is an advanced hot wedge welder developed by Hebei MingMai Technology Co., Ltd

This model can weld geomembrane PE PP PVC PVDF EVA ECB from 1.0 - 3.0mm

Hot Wedge Welder Technical Data

Model	SWT-NS900
Voltage	220V/110V
Frequency	50/60Hz
Power	1800W
Net Weight	13KG
Overlap Width	12cm
Welding Speed	0.5 - 5m/min
Seam Width	15mm*2, interior cavity 15mm
Welding Thickness	1.0 - 3.0mm
Applicable Material	PE PP PVC PVDF EVA ECB
