Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hot Wedge Welder | Applicable Industries: | Roof Constructions, Sewage Treatment, Etc |
|---|---|---|---|
| Size: | 495*370*400mm | Welding Speed: | 0.5-5.0m/min |
| Welding Thickness: | 1.0-3.0mm | Weight: | 19kg/13kg |
| Frequency: | 50-60HZ | Warranty: | 2 Years |
| Power: | 1800w | Certification: | CE |
Hot Wedge Welder Description:

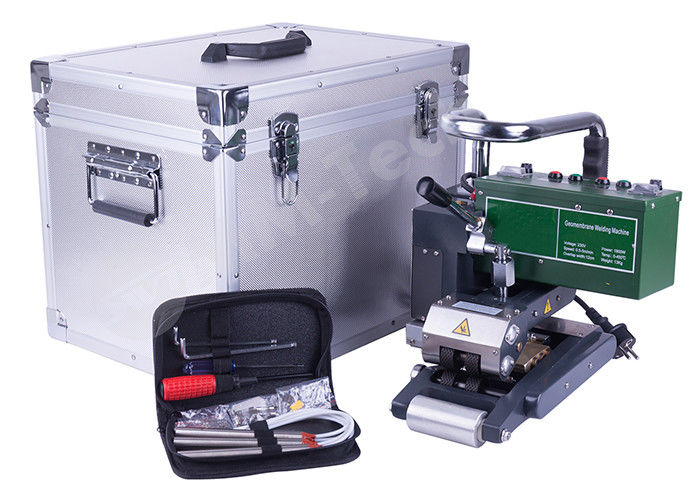

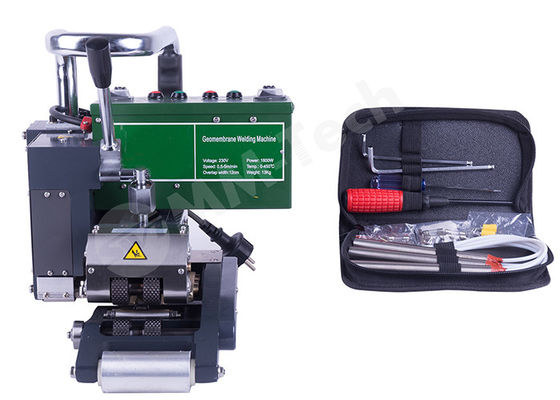

This Geomembrane Welding Machine adopts advanced hot wedge strcuture, it can be welded in many difficult environments. With its high power,high speed and pressure,it welds 1.0mm-3.0mm thickness hot meltin materials such as HDPE,LDPE,PVC,EVA,ECB,PP and others.
Technical parameter:
| ltem No. | SWT-NS900D | Welding Speed | 0.5M—10M/Min(Adjustable) |
| Voltage | 220v (Customized Acceptable) | Thickness Welded | 1.0—3.0mm(SingleLayer) |
| Frequency | 50/60Hz | Welding Temperature | 0—450°C(Adjustable) |
| Power | 1800W | Seam Strength | ≥85%Welded Layer |
The Familiar Malfunction and elimination:
| Phenomena | Reason | The was of eliminate |
|
NO turning of the electric machine
|
Non direction of power supply | Check the power supply whether it is connected or not |
| The damage of Insurance wire by burning | Change the insurance wire | |
|
The damage of speeding circuitry board lines By burning |
Change the speeding circuitry board | |
| The damage of electric machine by burning | Change the electric machine | |
| Non speeding of the electric machine | Speeding knob is untightly | Tight the speeding knob |
| Power pipe was shocked out | Replacing the speeding wire board | |
| Non heating up Thermal wedge | The damage of electric pipe by burning | Replacing the electric pipe |
| The damage of temperature control instrument | Replacing the temperature control instrument | |
| Thermocouple with malfunction | Change the thermocouple | |
| The burning of thermal wedge | The damage of temperature control instrument | Change the temperature control instrument |
Construction Drawing:
Packing:
| Each set includes: | machine + 3pcs heating elements + Disassembly tools |
| + fuses +manual book |
FAQ:
Q: What's the difference between it and SWT-NS900D?
A: SWT-NS900 only has temperature digital display.
Q: What the difference between it and other hot wedge welder?
A: SWT-NS900D has higher power and large welding range.
Q: When is the shipping date?
A: We have sufficent stock can dispatch the machine to you immediately after your payment.
Q: How many days can I receive the machine?
A: You will receive it about 7-10 days after your payment.
Q: Can you put our design and logo on products?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q: What's the payment term?
A: We can accept for PAPAL, T/T. Any other payment as your request.
