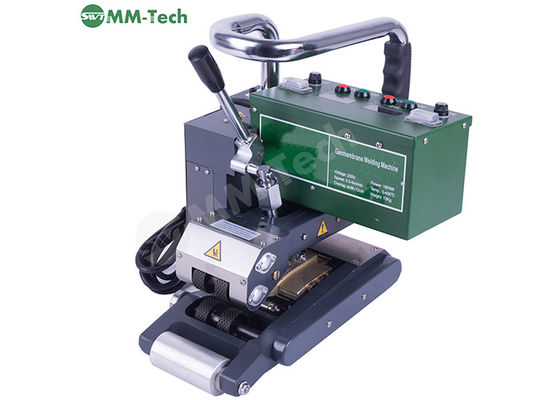

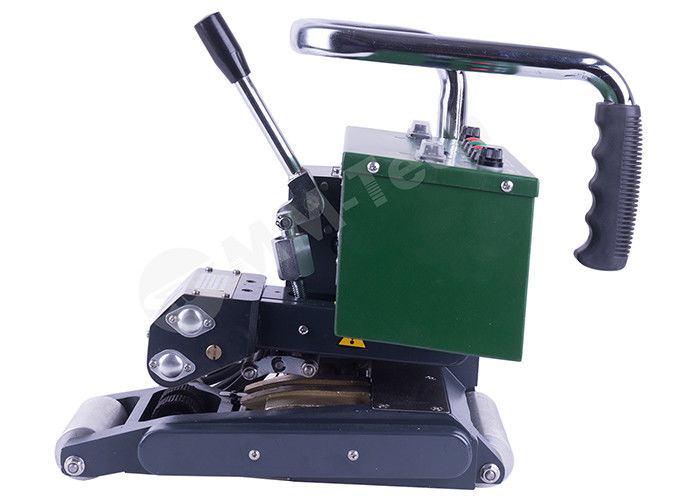

Digital Function Overlap Dam Liner Soldering For HDPE Hot Wedge Welder

Digital Function Overlap Dam Liner Soldering For HDPE Hot Wedge Welder
Digital Function Overlap Dam Liner Soldering For HDPE Hot Wedge Welder

Large Image :  Digital Function Overlap Dam Liner Soldering For HDPE Hot Wedge Welder

Product Details:
Place of Origin: China
Brand Name: MM-Tech
Certification: CE
Model Number: SWT-NS900D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2500-2700/set
Packaging Details: 495*370*400mm
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10 sets / day
Detailed Product Description
Product Name: Hot Wedge Welder Applicable Industries: Roof Constructions, Sewage Treatment, Etc
Size: 495*370*400mm Welding Speed: 0.5-5.0m/min
Welding Thickness: 1.0-3.0mm Weight: 19kg/13kg
Frequency: 50-60HZ Warranty: 2 Years
Power: 1800w Certification: CE

Hot Wedge Welder Description:

This hot wedge welder adopts advanced hot wedge strcuture, it can be welded in many difficult environments. With its high power,high speed and pressure,it welds 1.0mm-3.0mm thickness hot meltin materials such as HDPE,LDPE,PVC,EVA,ECB,PP and others.


Hot Wedge Welder Technical parameter:


ltem No. SWT-NS900D Welding Speed 0.5M—10M/Min(Adjustable)
Voltage 220v (Customized Acceptable) Thickness Welded 1.0—3.0mm(SingleLayer)
Frequency 50/60Hz Welding Temperature 0—450°C(Adjustable)
Power 1800W Seam Strength ≥85%Welded Layer



Advantages:



1. The control of this series of welding machine adopts automatic thermostatic control with high control accuracy and low temperature fluctuation;


2. Speed control adopts automatic voltage and speed regulation circuit, with great output torque and the operating is stable.


3.It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.


Hot Wedge Welder Package:

Digital Function Overlap Dam Liner Soldering For HDPE Hot Wedge Welder 0



FAQ:

Q: What's the difference between it and SWT-NS900D?
A: SWT-NS900 only has temperature digital display.


Q: What the difference between it and other hot wedge welder?
A: SWT-NS900D has higher power and large welding range.


Q: When is the shipping date?
A: We have sufficent stock can dispatch the machine to you immediately after your payment.


Q: How many days can I receive the machine?
A: You will receive it about 7-10 days after your payment.


Q: Can you put our design and logo on products?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.


Q: What's the payment term?
A: We can accept for PAPAL, T/T. Any other payment as your request.
