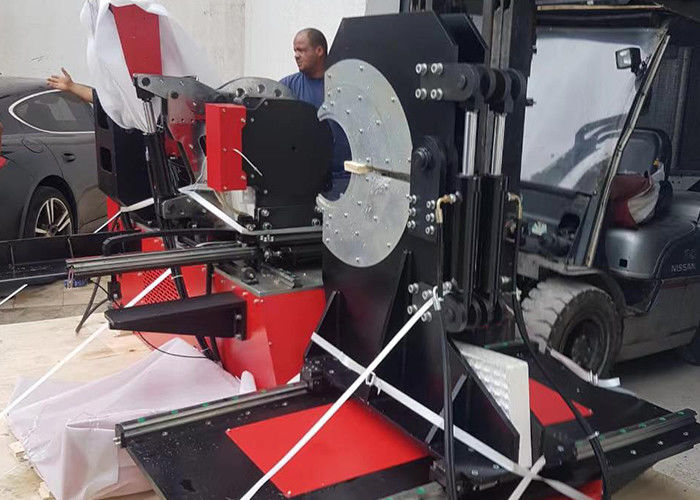

SWT-S450W Saddle Fusion Machine CE Approved For HDPE Pipe

SWT-S450W Saddle Fusion Machine CE Approved For HDPE Pipe
SWT-S450W Saddle Fusion Machine CE Approved For HDPE Pipe

Large Image :  SWT-S450W Saddle Fusion Machine CE Approved For HDPE Pipe

Product Details:
Place of Origin: CHINA
Brand Name: MM-TECH
Certification: CE
Model Number: SWT-S450W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $11,500-11,900 / SET
Delivery Time: Within 7 days
Payment Terms: Western Union, T/T, PayPal
Detailed Product Description
Hydraulic Unit Power: 1.5kW Heating Plate Power: 8-12kW
Weight: 1900KG Fitting Type: Manhole
Drill Motor Power: 1.5-3kW System Pressure Ranges: 0-16MPa
Total Power: 11-16.5kW Working Voltage: 380V±10%, 50Hz
Heating Plant Max. Temp.: 270 Degree Celsius Ambient Temperature: -5-450 Degree Celsius
Branch Pipe Max. Dia.: 315mm/400mm/500mm/560mm Main Pipe Max. Dia.: 630mm/800mm/1000mm/1200mm
Highlight:

Saddle Fusion Machine CE

,

SWT-S450W Saddle Fusion Machine

,

Saddle Fusion Machine For HDPE Pipe

Saddle Fitting Fusion Welding Machine for HDPE Pipe



Product Profile



1. The saddle pipe fusion machine has a removable PTFE coated heating plate.

2. It has a separate two-channel timer that records times in soaking and cooling phases.

3. The digital high-accurate pressure meter of the saddle pipe fusion machine indicates clearer readings.

4. The linear guide ways are equipped with a heating plate and dragging plate.



Technical Data

Hydraulic unit power 1.5kW
Heating plate power 8~12kw
Weight 1900KG
Fitting type Manhole
Drill motor power 1.5~3kW
System pressure ranges 0-16MPa
Total power 11~16.5kW
Heating plant max. temp. 270 degree celsius
Ambient temperature <-5~45 degree celsius>
Branch pipe max. dia. 315mm/400mm/500mm/560mm
Main pipe max.dia. 630mm/800mm/1000mmm/1200mm
