1200mm Workshop Saddle Fusion Machine Making Reducing Plastic Tee

Large Image : 1200mm Workshop Saddle Fusion Machine Making Reducing Plastic Tee

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-S450W

Payment & Shipping Terms:

Minimum Order Quantity:	1 Sets
Price:	$9500-$12800 set
Packaging Details:	Plywood Case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Saddle Fusion Welding Machine	Main Pipe Max Diameter:	630mm/800mm/1000mm/1200mm
Ambient Temperature:	-5~45℃	Heating Plant Max. Temp:	270℃
System Pressure Ranges:	0-16Mpa	Working Voltage:	380V±10%, 50Hz
Heating Plate Power:	8~12Kw	Hydraulic Unit Power:	1.5Kw
Drill Motor Power:	1.5~3Kw	Weight:	1900KG
Highlight:	workshop saddle fusion machine , reducing plastic tee saddle fusion machine , 1200mm saddle fusion machine

SWT-S450W Workshop Tee Saddle Fusion Machine Making Reducing Plastic Tee

Saddle Fusion Welding Machine Description:

This type Saddle Fusion Welding Machine is suitable for fabricating PE reducing tee in a workshop.Integrated function of wdlding and taping enables to complete the whole fabricating process.

Saddle Fusion Welding Machine Details:

Product Details
WELDING TYPE	SADDLE T TYPE	APPLIED MATERIAL	PE/PPIPVDF
APPLICABLE ENVIRONMENT TEMPERATURE	-10℃ ~ 45℃	vOLTAGE	AC 380V,50/60Hz

Saddle Fusion Welding Machine Feature:

1. The saddle pipe fusion machine has a removable PTFE coated heating plate.

2. It has a separate two-channel timer that records times in soaking and cooling phases.

3. The digital high-accurate pressure meter of the saddle pipe fusion machine indicates clearer readings.

4. The linear guide ways are equipped with a heating plate and dragging plate.

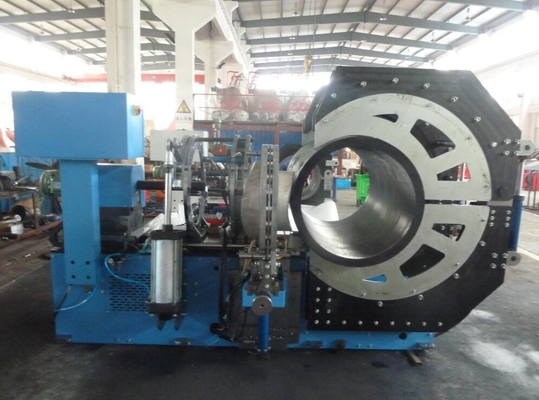

1200mm Workshop Saddle Fusion Machine Making Reducing Plastic Tee 0

Our Business Scope Includes As Below:

1. HDPE pipe butt fusion machine(welding range:20mm-2000mm)
2. Fitting making machine to fabricate elbow,tee,cross and wyes fittings(welding range:63mm-2000mm)
3. Pipe saw to cut the pipe with different angle(cutting range: max:3000mm)
4. Saddle fusion machine to make reducing tee fitting
5. Electrofusion machine

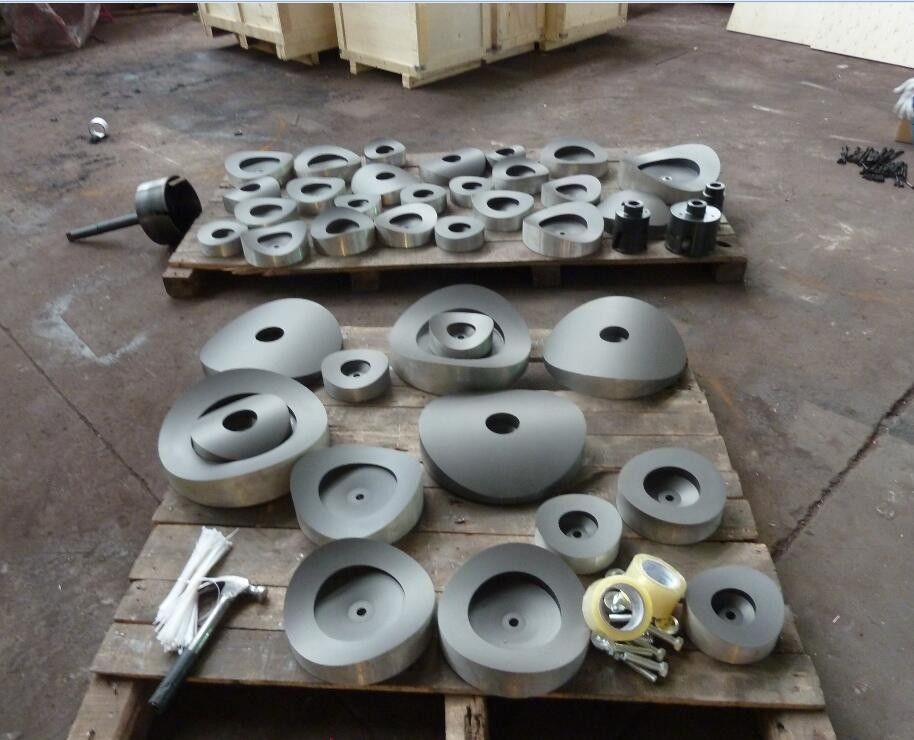

1200mm Workshop Saddle Fusion Machine Making Reducing Plastic Tee 1

Service:

We always provide high quality products and workable price for every clients and have won the confidence and approval.

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
