SWT-S450W 450mm Plastic Pipes Saddle Fusion Machine SDR11

Large Image : SWT-S450W 450mm Plastic Pipes Saddle Fusion Machine SDR11

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-S450W

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$9500-$12800 set
Packaging Details:	Plywood Case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Saddle Fusion Welding Machine	Main Pipe Max Diameter:	630mm/800mm/1000mm/1200mm
Working Voltage:	380V±10%, 50Hz	System Pressure Ranges:	0-16Mpa
Ambient Temperature:	-5~45℃	Drill Motor Power:	1.5~3Kw
Weight:	1900KG	Warranty:	2 Years
Heating Plant Max. Temp:	270℃	Moq:	1 Set
Highlight:	450mm saddle fusion machine , plastic pipes saddle fusion machine , sdr11 saddle fusion machine

SWT-S450W 450mm Plastic Pipes Saddle Fusion Welding Machine

Saddle Fusion Welding Machine Description:

This type Saddle Fusion Welding Machine is suitable for fabricating PE reducing tee in a workshop.Integrated function of wdlding and taping enables to complete the whole fabricating process.

Saddle Fusion Welding Machine Specification:

Main pipe	90	110	125	140	160	180	200	225	250	280	315
Branch pipe	90	110	125	140	160	180	200	225	250	280	315
63		*	*	*	*	*	*	*	*	*	*
75					*	*	*	*	*	*	*
90						*	*	*	*	*	*
110								*	*	*	*
125										*	*
140											*
160

Saddle Fusion Welding Machine Feature:

* Removable PTFE coated heating mould.

* Separate two-channel timer records times in soaking and cooling phases.

* Digital high-accurate pressure meter indicates clearer readings.

* Linear guide ways are equipped with heating plate and dragging plate.

* PLC control available for automatic process to ensure high welding standard.

* Wide range of application to improve machine usage.

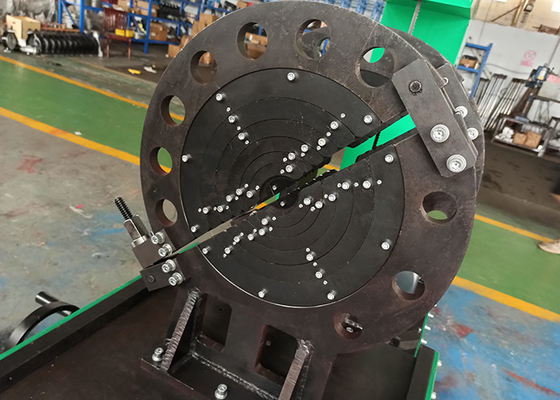

SWT-S450W 450mm Plastic Pipes Saddle Fusion Machine SDR11 0

Our advantage:

1) CE, SGS, ISO9001 certificate

2) Provide on line video technique teaching of fusion welding

3) 2 years warranty

4) Provide customized welding machine

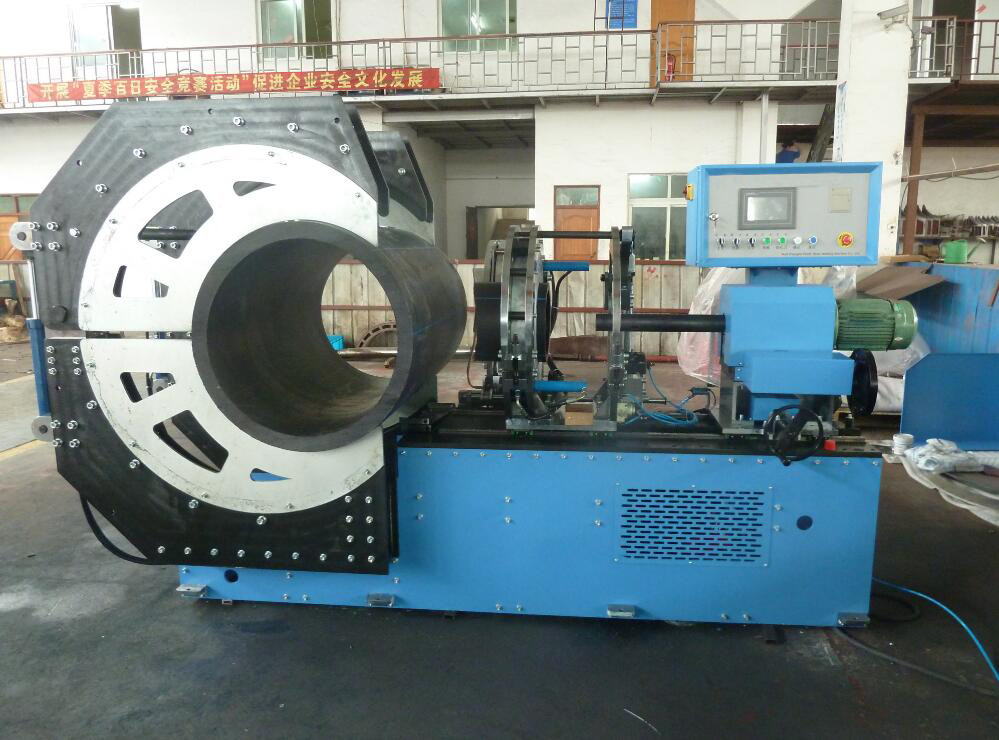

SWT-S450W 450mm Plastic Pipes Saddle Fusion Machine SDR11 1

Service:

We always provide high quality products and workable price for every clients and have won the confidence and approval.

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
