3-30mm Whole Heating Plastic Sheet Welding Machine Auto For PP

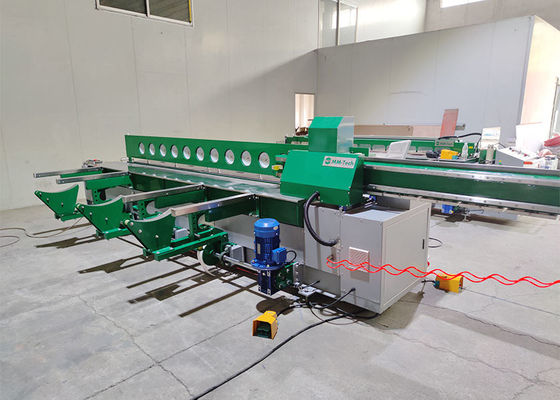

Large Image : 3-30mm Whole Heating Plastic Sheet Welding Machine Auto For PP

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH3000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$20,000.00-$26,000.00 set
Packaging Details:	Wooden Box
Delivery Time:	approximately 30 days after supplier received buyer's advance payment
Payment Terms:	T/T, Western Union, PayPal, Alibaba, Credit Card
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Rated Voltage:	380V/415V, 3P, 50/60Hz
Optional Device:	90° Vertical Welding	Packing Diamensions:	482182162CM
Weldable Working Length:	3000mm	Roll Circle Diameter Minimum:	350mm
Welding System:	CNC	Rolling Motor Power:	4.4 KW
Warranty:	2 Years	CE Certification:	Yes
Highlight:	3mm plastic sheet welding machine , 30mm pp sheet welding machine , whole heating plastic sheet welding machine

SWT-PH2000 Sheet Butt Fusion Welding Machine With LCD Touch

Sheet Butt Fusion Welding Machine Description:

The plastic sheet butt fusion machine is of our own design, with Germany technology applied. This model is accurate, efficient & easy-to-use, and can be used to weld in horizontal and circular position and perform joints as well.

Sheet Butt Fusion Welding Machine Technical Parameter:

	SWT-PH2000	SWT-PH3000	SWT-PH4000	SWT-PH5000	SWT-PH6000
Processing thickness(mm)	2-50	2-50	2-50	2-50	2-50
Processing length(mm)	2000	3000	4000	5000	6000
Roll circle diameter min(mm)	320	400	450	550	550
Air pressure(kg.f/cm2)	4to8	4to8	6to8	6to8	6to8
Energy source(m3/min)	0.0032	0.0052	0.0062	0.0068	0.0075
The rated voltage(V)	38o	380	38o	380	380
Rated current(A)	9	13.6	13.6	13.6	13.6
Heating mode	whole heating	whole heating	whole heating	whole heating	whole heating
Drum institutions(parts)	selectable	selectable	selectable	selectable	selectable
LengthWidthHeight(mm)	2550640960	370011001200	475012001120	575025001020	675025001020
suitable for material	PP PVC PVDF PPN PE

Sheet Butt Fusion Welding Machine Products:

3-30mm Whole Heating Plastic Sheet Welding Machine Auto For PP 0

Sheet Butt Fusion Welding Machine Include:

Sheet Butt Fusion Welding Machine Standard Configuration
NO.	Item	QTY
1	sheet butt fusion machine	1 set
2	tool box	1pcs
3	hexagon key	1set
4	screw driver	2pcs
5	wrench	1pcs
6	adjustable wrench	1pcs
7	coupling	10pcs
8	elbow	10pcs
9	plier	1pcs
10	heating element	4pcs
11	pedal	1pcs
12	temperature control	1pcs
13	air filter valve	1 set
14	hose pipe	10m
15	support	1set
16	triangle support	2pcs
17	steel pallet	1pcs
18	plywood case	1pcs

PS:

Please contact Clara, and she will send you additional heating tubes as gift after you confirm the order

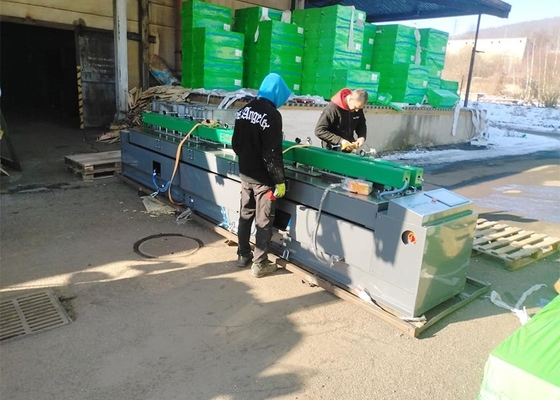

Sheet Butt Fusion Welding Machine Operate Procedure:

3-30mm Whole Heating Plastic Sheet Welding Machine Auto For PP 1

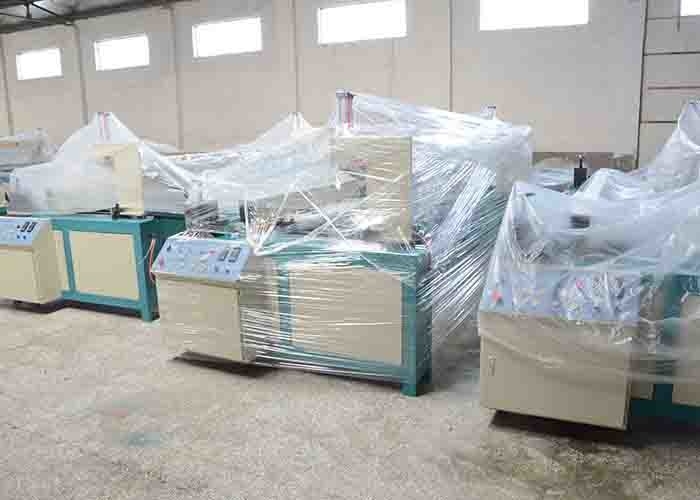

About the Delivery:

We have sufficient stock can dispatch the machine to you immediately.
