220V Digital Display Hot Wedge Geomembrane Welder For Mining

Large Image : 220V Digital Display Hot Wedge Geomembrane Welder For Mining

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS900D

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2700-USD3200 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Usage:	Geomembrane Welding
Welding Speed:	0.5-5M Adjustable	Voltage:	220V, Customized
Temperture:	0-450 Degree	Material:	PP,HDPE,PVC
Welding Type:	Hot Wedge	Welding Range:	1.0-3.0mm
Welding Width:	120 Mm	Power:	1800W
Highlight:	digital display geomembrane welder , hot wedge geomembrane welder , mining geomembrane welding machine

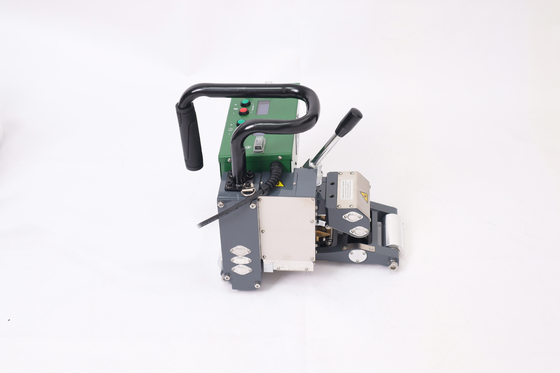

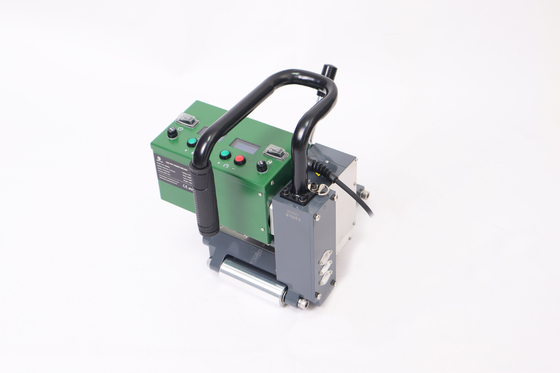

SWT - NS900D Digital Display Hot Wedge Geomembrane Welding Machine For Mining

Geomembrane Welding Machine Description:

It adopts an advanced hot wedge structure. With its high power, high speed, and pressure, it welds 1.0-3.0mm thickness hot melting materials such as HDPE, LDPE, PVC, EVA, ECB, PP, and others. This machine is specially designed for water conservancy, aquaculture, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.

Geomembrane Welding Machine Specification:

MODEL	SWT-NS900D
INPUT VOLTAGE	220V/110V,50/60HZ
POWER	1800W
OVERLAP WIDTH	12CM
WELDING SPEED	0.5-5m/min
TEMPERATURE	0-450℃ ADJUSTABLE
SEAM WIDTH	15MM*2 INTERIOR CAVITY 15MM
WELDING THICKNESS	1.0-3.0MM

Geomembrane Welding Machine Features:

Control System	Advanced intelligent digital control system
Drive System	High power and torque motor combined with double precise driving motion
Pressure Adjustment System	Advance "T" style jib design and pressure regulation structure
Pressure Roller	Special stainless steel pressure roller with a strong pressure force
Heating System	Powerful metal hot wedge and special heating system design

220V Digital Display Hot Wedge Geomembrane Welder For Mining 0

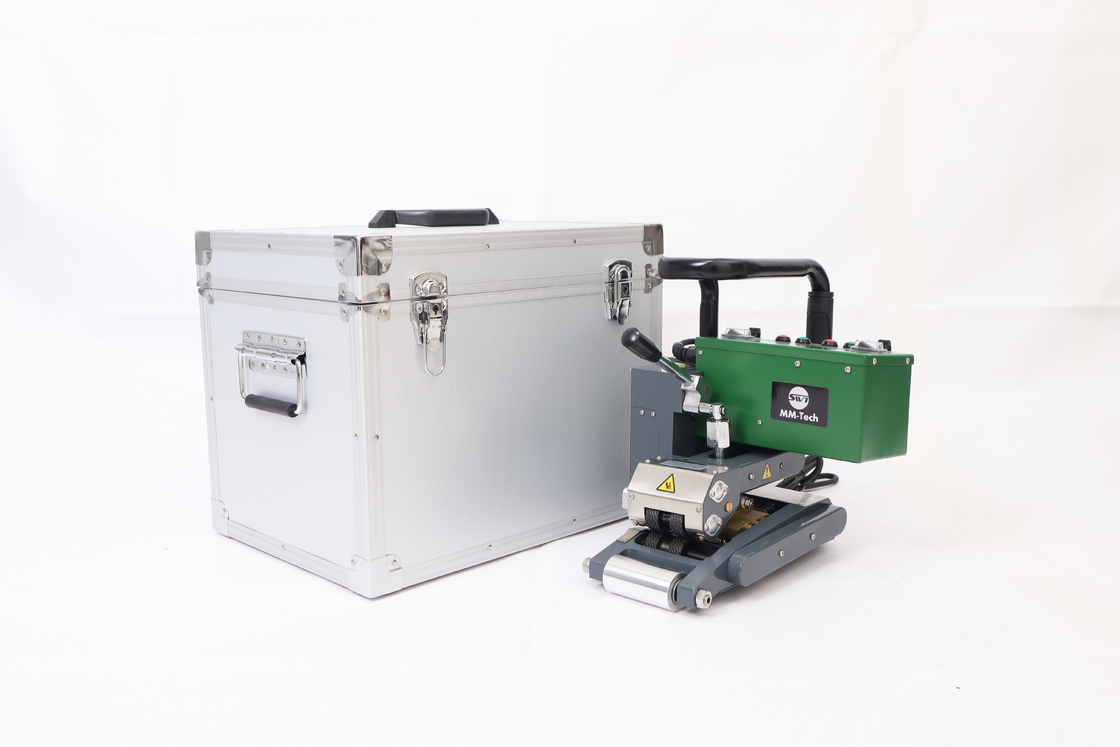

Package:

220V Digital Display Hot Wedge Geomembrane Welder For Mining 1

The whole machine includes:

1. SWT-NS900D geomembrane welding machine

2. 3 pcs heating tube

3. Wrenches

4. Screwdrivers

5. A operating manual
