Digital Display Pond Liner 3mm Wedge Welder For Geomembrane

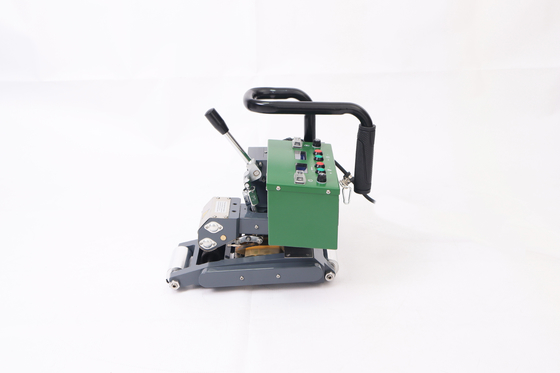

Large Image : Digital Display Pond Liner 3mm Wedge Welder For Geomembrane

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS900D

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2700-USD3200 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Usage:	Tunnel, Tank, Pond Liner
Welding Speed:	0.5-5M Adjustable	Voltage:	220V, Customized
Temperture:	0-450 Degree	Material:	PP,HDPE,PVC
Welding Type:	Hot Wedge	Welding Range:	1.0-3.0mm
Digital Display:	Temperature & Speed	Power:	1800W
Highlight:	digital display wedge welder , pond liner geomembrane welding machine , geomembrane wedge welder

SWT - NS900D Digital Display Pond Liner 3mm Geomembrane Wedge Welder

Geomembrane Welding Machine Description:

This hot wedge welder adopts an advanced hot wedge structure, it can be welded in many difficult environments. With its high power, high speed, and pressure, it welds 1.0mm-3.0mm thickness hot melt materials such as HDPE, LDPE, PVC, EVA, ECB, PP, and others.

Geomembrane Welding Machine Specification:

Product Name:	Digital Display 3mm Hot Wedge Welder
Voltage:	220V/110V Customized
Frequency:	50/60 HZ
Power:	1800w
Welding Speed:	0.5-5.0m/min
Overlap Width:	12 cm
Heating Temperature:	20-620℃
Certification:	CE
Warranty:	2 years

Application:

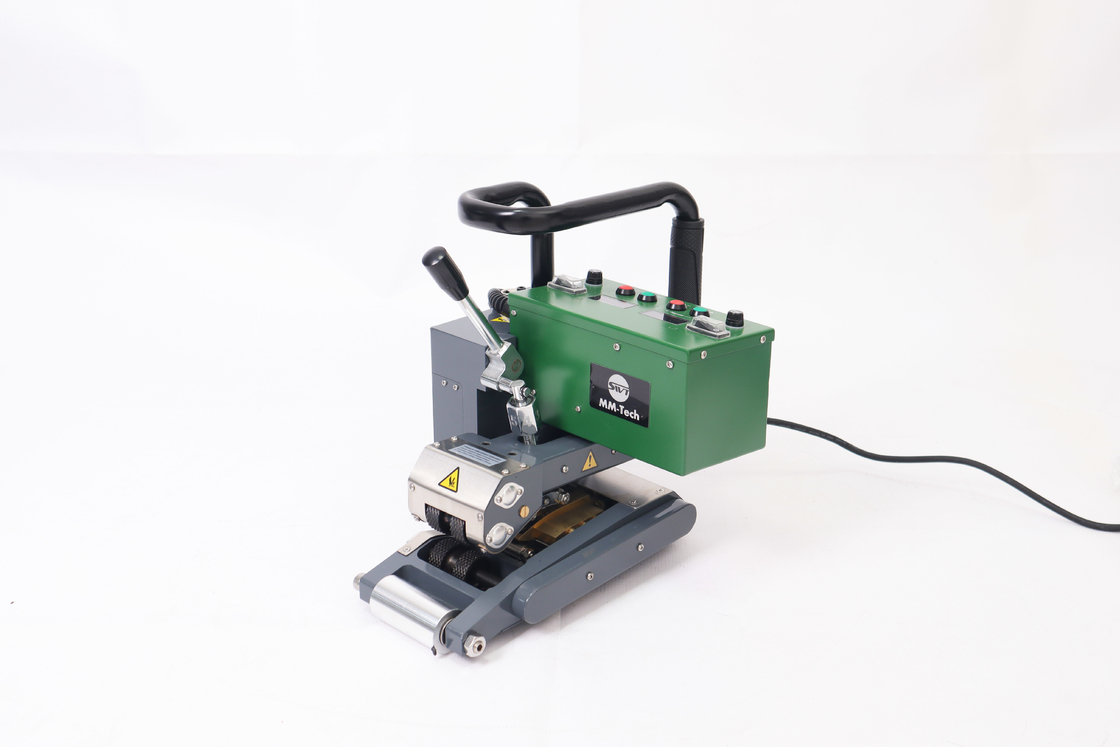

Digital Display Pond Liner 3mm Wedge Welder For Geomembrane 0

Advantages:

1. The control of this series of welding machines adopts automatic thermostatic control with high control accuracy and low-temperature fluctuation;

2. Speed control adopts automatic voltage and speed regulation circuit, with great output torque and the operating is stable.

3. It can maintain a constant speed on the condition of creeping, vertical creeping, and variable road load. Also, this series of welding machines are stable in performance despite external temperature and voltage variation.

Package:

Aluminum box + cartoon box

The whole machine includes:

1. SWT-NS900D geomembrane welding machine

2. 3 pcs heating tube

3. Wrenches

4. Screwdrivers

5. A operating manual

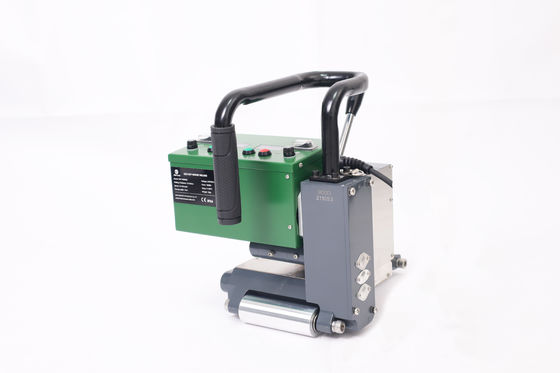

Digital Display Pond Liner 3mm Wedge Welder For Geomembrane 1

Tips:

a. For welding membrane thickness 1.0-3.0 mm with the steel pressure roller.

b. For welding the materials that may release corrosive gas after hot fusing such as PVC and other similar material, stainless steel hot wedge (optional accessory) is preferred for extending service life.

c. Any else customized demands, you can ask us directly, we have a professional technicians team.
