2mm Hot Wedge Fish Tank Pvc Hdpe Geomembrane Welding Machine

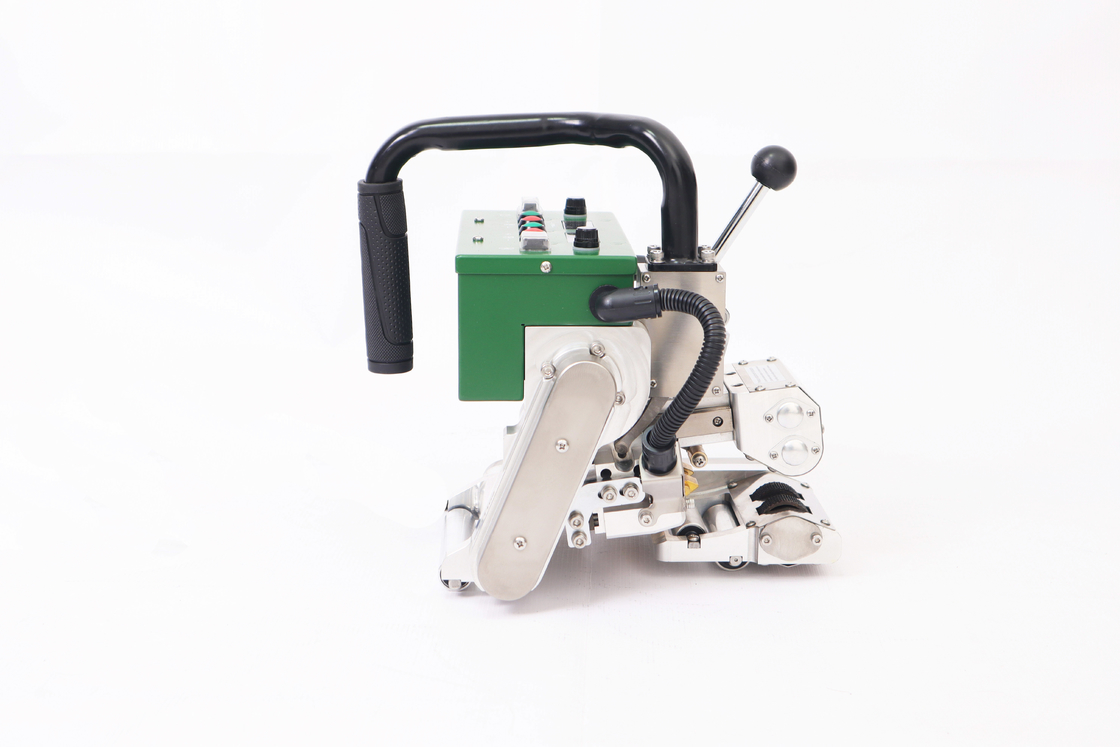

Large Image : 2mm Hot Wedge Fish Tank Pvc Hdpe Geomembrane Welding Machine

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NSGM1

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2100-USD2400 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Usage:	Fish Tank, Pond Liner, Chemical Mining
Voltage:	220V, Customized	Wedge Type:	Stainless/ Copper
Power:	1200W	Warranty:	24 Month
Material:	PP,HDPE,PVC	Welding Range:	0.2-2.0mm
Digital Display:	Temperature & Speed	Welding Speed:	0.5-8M Adjustable
Highlight:	fish tank geomembrane welding machine , pvc geomembrane welding machine , hdpe wedge welder

SWT-NSGM1 2mm Hot Wedge Fish Tank PVC HDPE Geomembrane Plastic Welder

Geomembrane Welder Instruction:

SWT-NSGM1 Hot Weldge Welder solder 0.2-2.0mm thickness hot melt material such as HDPE,LDPE,PVC,EVA,ECB,PP. It is of welding by one edge against the other edge, it's designed for water conservancy, aquaculture,landfills,chemcial mining, sewage treatment,roof constructions and other waterproofing projects, etc.

Geomembrane Welder Specification:

Technical Parameters For SWT-NSGM1 Geomembrane Hot Wedge Welder
Voltage		220 V ± 5%
Welding Type		Hot Wedge Welding
Power		1200W
Heating temperature		0-450°C
Welding Speed		0.5-8m/min
Thickness of material		0.2mm-2.0mm
Overlap width		120mm
Welding width		15mm*2, interior cavity 20mm
Welding Use		Fish Tank, Pond Liner, Chemical Mining
Welding Material		PVC HDPE PP
Size		350(L) X 267mm(W) X 267mm(H)

Geomembrane Welding Machine Features:

1. Control System: Advanced intelligent digital control system which temperature and speed read on LCD screen.2.Pressure
Adjustment System: advanced"T" jib design and pressure regulation structure.
3. Pressure Roller: special stainless steel pressure roller with strong pressure force.
4. Hot Air Heating System: advanced hot air heating system perfects the welding quality even if corrosive material and bad working
environments.

Hot Wedge Welder Welding Diagram:

2mm Hot Wedge Fish Tank Pvc Hdpe Geomembrane Welding Machine 0

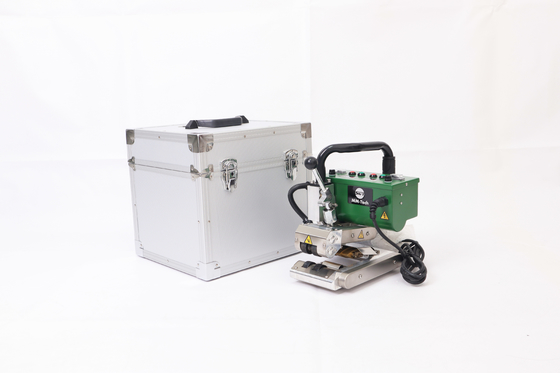

Package:

Aluminum box + carton box

2mm Hot Wedge Fish Tank Pvc Hdpe Geomembrane Welding Machine 1

After-Sales Service:

We always provide high-quality products and workable prices for every client and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts are broken or do not work under normal operating, we provide them for free.
