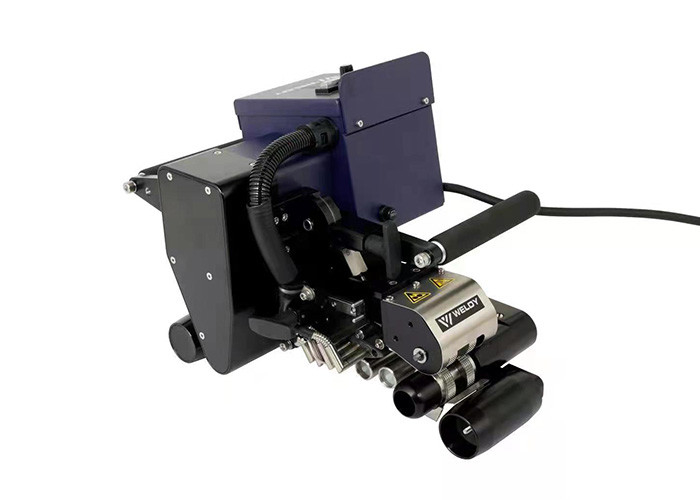

PP 1750W Hdpe Wedge Welder Weldy Wgw 300 Longlife

Large Image : PP 1750W Hdpe Wedge Welder Weldy Wgw 300 Longlife

Product Details:

Place of Origin:	CHINA
Brand Name:	WELDY
Certification:	CE
Model Number:	WGW 300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$3,000-3,400/SET
Delivery Time:	Within 7 days
Payment Terms:	BBVA, BCP, SANTANDER, BOLETO, WESTERN UNION, PAYPAL
Supply Ability:	1200 sets per year

Contact Now

Detailed Product Description

Voltage:	230V	Frequency:	50/60Hz
Name:	Hdpe Wedge Welder Weldy Wgw 300	Keyword:	Hdpe Wedge Welder
Weldable Materials:	HDPE-LDPE-PP	Thickness To Weld:	0.8-3.0MM
Highlight:	1750w hdpe wedge welder , ce hdpe wedge welder , 1750w plastic hot wedge welder

Product Profile

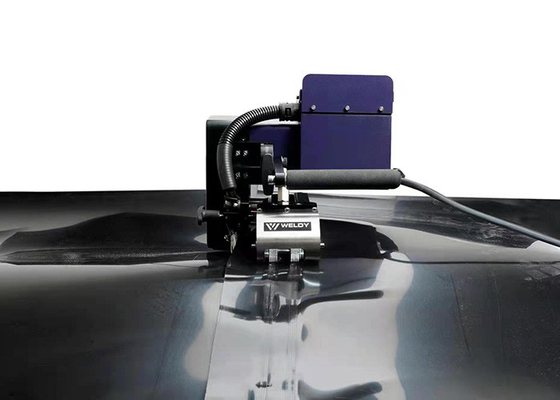

Wedge welder for geomembranes WELDY WGW 300

Field-proven and strong design
* Simple and clear handling thanks direct buttons
for each function
* Powerful, durable drive motor
* Perfect welding result thanks to optimized
seam geometry
* Big travel rollers - perfect even on bumpy
underground

Technical Data

Voltage; Frequency	230V; 50/60Hz
Max. power consumption	1750W
Max. wedge temperature	450°C
Wedge size and material	80 mm, CU for HD-PE, LD-PE, PP
Welding tracks (others on request)	2 x 12mm, with test channel
Max. welding pressure	1400N
Max. overlap	150mm
Motor speed	0.5 - 8.5 m/min
Dimensions (L × W × H)	445 × 300× 318 mm
Weight	15 kg including power supply cord
Weldable geomembranes	HD-PE 0.8-2.5mm; LD-PE/TPO/FPO/PVC 0.8-3.0mm; Geotextile (PVC with steel wedge only)
Conformity, Protection class	Protection Class I
Scope of delivery	WGW 300, toolbox, 3 Allen keys, cleaning brush, spare fuses, user manual
