0.2-1.5mm PP PVC PE Membrane Pond Liner Welding Machine With Digital Display

Large Image : 0.2-1.5mm PP PVC PE Membrane Pond Liner Welding Machine With Digital Display

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-NS800D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1200-1300/set
Packaging Details:	370240285mm
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets / day

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Power:	800w
Frequency:	50/60HZ	Welding Thickness:	0.2-1.5mm
Welding Speed:	0.5-5.0m/min	Material:	PP,HDPE,PVC
Weight:	9kg/5kg	Warranty:	2 Years
Digital Display:	Yes	Size:	370240285mm
Highlight:	PE Pond Liner Welding Machine , PVC Pond Liner Welding Machine , PP Pond Liner Welding Machine

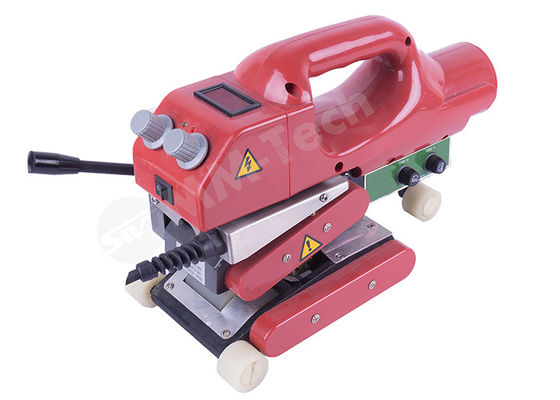

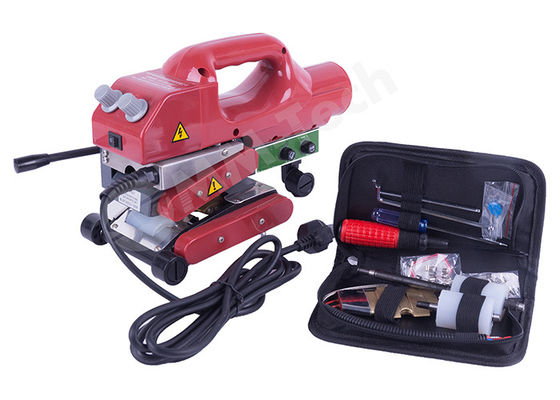

SWT-NS800D Pond Liner Welding Machine 0.2-1.5mm PP PVC PE Membrane With Digital Display

Geomembrane Welding Machine Introduction:

SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.

Geomembrane Welding Machine Specification:

Voltage:	220v or 110v
Frequency	50/60Hz
Power:	800W/1100W
Welding speed:	0.5-5m/min
Heating temperature:	50-450℃
Thickness of material:	0.2mm-1.5mm( PVC: 0.2-2.0mm )
Overlap width:	10cm ( can be customized)
Welding width:	12.5mm×2,interior cavity 12mm( can be customized )
Seam strength:	≥85% base material (tensile resistant in shear direction)
Weight:	5kgs
Insulation class:	class ll
Usage	for welding geomembrane,such as PE PVC EVA and so on

Tips:

1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.

2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.

Geomembrane Welding Machine Promotion:

From now on to the end of the month:

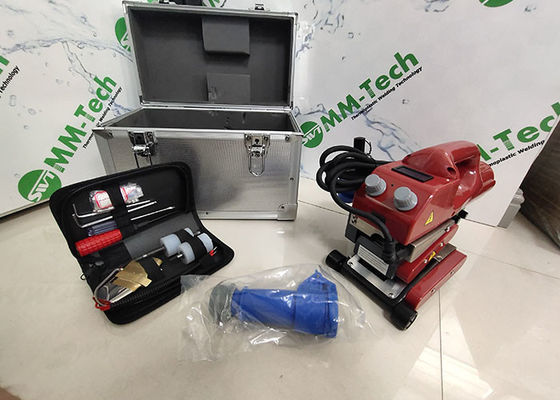

------------ Buy 1 set SWT-NS800D, we will send 1 hot air gun, 1 cutter and 20 blades as gifts.
