220V Hot Wedge Welder Sealing Geomembrane 0.8-3.0mm HDPE PP PVC

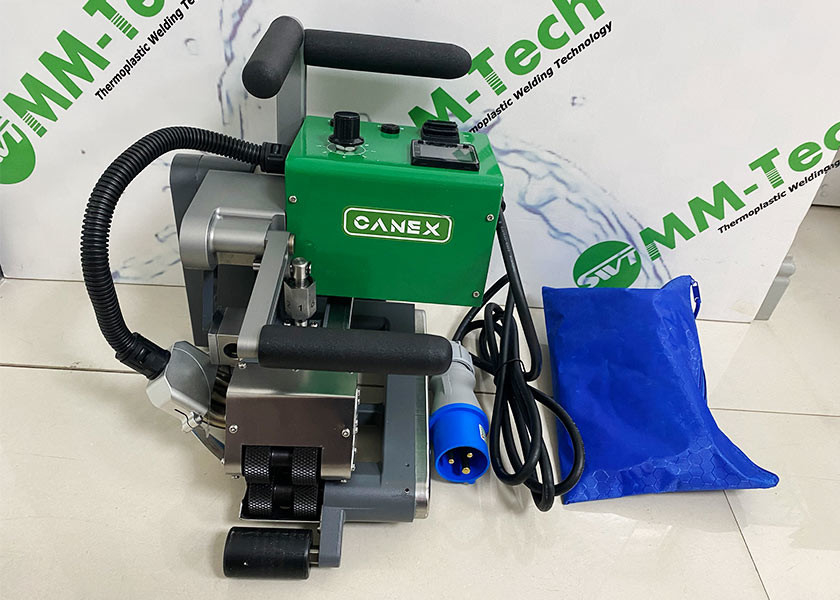

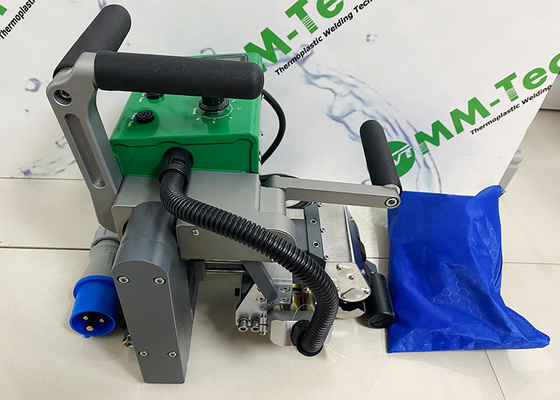

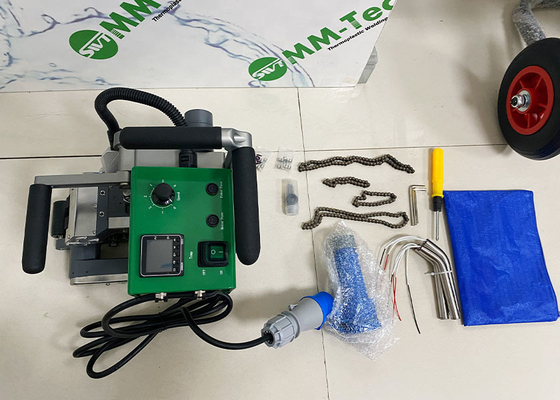

New Type CX500L Hot Wedge Machine For Welding And Sealing 0.8-3.0mm HDPE PP Geomembrane Use For Aquaculture And Lanfill

Product Description:

The CX500L is a dual purpose welding machine, allowing for single sided welding by feeding the geomembrane from the same side, typically used for capping biogas tanks and landfills. Additionally, it supports overlap welding, where the geomembrane can be fed from both sides (left and right).

Product Specifications:

Applications:

In environmental protection projects such as landfills and sewage treatment pools, the CX500L can quickly complete large-area membrane welding to form a seamless anti-seepage layer that meets environmental protection standards. In mining projects such as tailings ponds, the equipment can weld thickened geomembranes to help protect the mine ecology. For circular fish ponds, reservoirs, etc., the CX500L is the perfect choice for welding circular geomembranes.

Product Advantages:

1. Main Frame Design:

The main frame is made of aviation aluminum.die-cast,and painted on the surface, which is light and strong.

2. Precision Bearings:

The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

3. Hot Wedge:

Equipped with a copper hot wedge the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to loose.

4. Guide Rail Part:

The lower support rail is an eccentric wheel, the upper pressure wheel has a spring, and the guide rail is a copper sleeve stainless steel shaft with strong durability.

5. Pressure Adjustment:

The double handle design is ergonomic.and the pressure nut is equipped with a high-strength spring for easy adjustment.

6. Adjustable Eccentric Wheel:

Can be adjusted according to film thickness.
