Geomembrane Welding Machine CX500L Same Side Both Sides Film Feeding

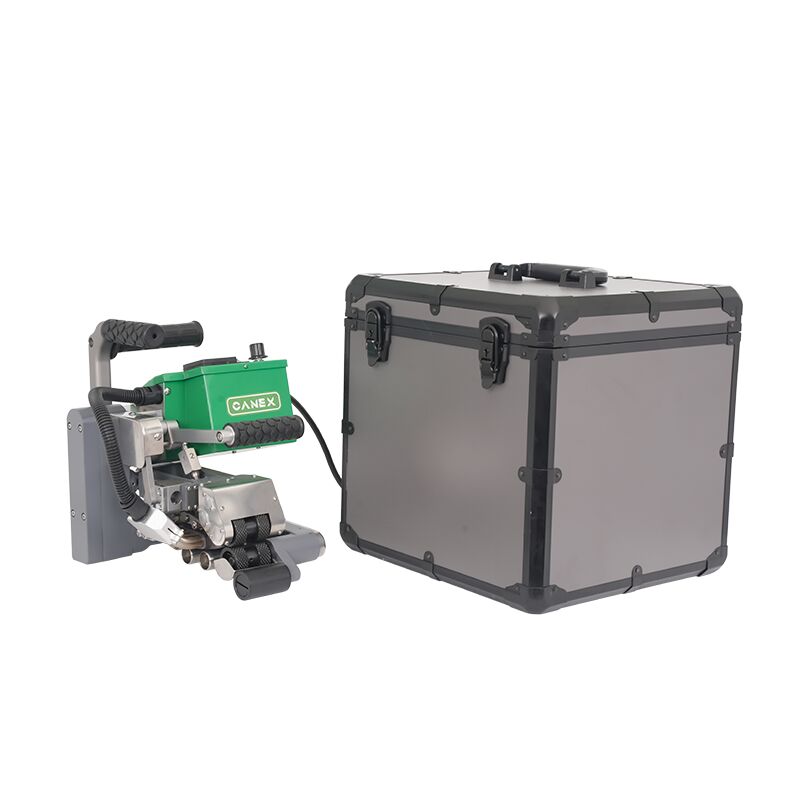

Large Image : Geomembrane Welding Machine CX500L Same Side Both Sides Film Feeding

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Model Number:	CX500L

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$1,850/set
Packaging Details:	Aluminum box + carton
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20 sets per day

Contact Now

Detailed Product Description

Input Voltage:	220V, 50Hz	Power:	1800W
Welding Speed:	0-6m/min	Heating Temperature:	0-450℃
Welding Material Thickness:	0.8mm-3.0mm	Welding Seam Width:	15mm×2, Inner Cavity 16mm
Welding Seam Strength:	≥85% Of Original Material	Overlap Width:	120mm
Highlight:	geomembrane welding machine same side film feeding , geomembrane welding machine CX500L model , geomembrane welding machine both sides feeding

Hot Wedge Welder CX500L

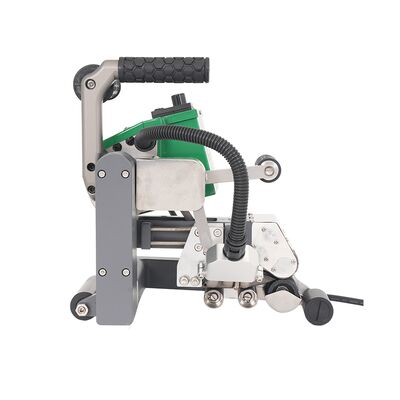

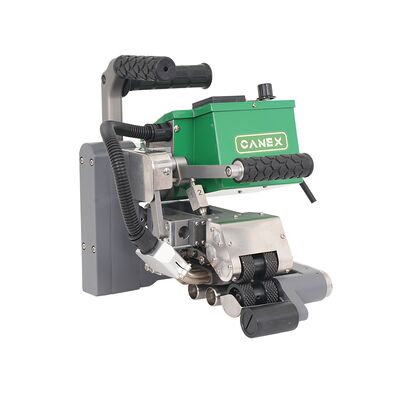

Geomembrane Welding Machine CX500L Same Side Both Sides Film Feeding 0

CX500L Product Features

Main Frame Design
The main frame is made of aviation aluminum.die-cast,and painted on the surface, which is light and strong.
Precision Bearings
The bearing position and screw holes are CNC machined, using Japanese lKO needle roller bearings and German NSK deep groove ball bearings.
Hot Wedge
Equipped with a copper hot wedge the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to loose.
Guide Rail Part
The lower support rail is an eccentric wheel, the upper pressure wheel has a spring, and the guide rail is a copper sleeve stainless steel shaft with strong durability.
Pressure Adjustment
The double handle design is ergonomic.and the pressure nut is equipped with ahigh-strength spring for easy adjustment.

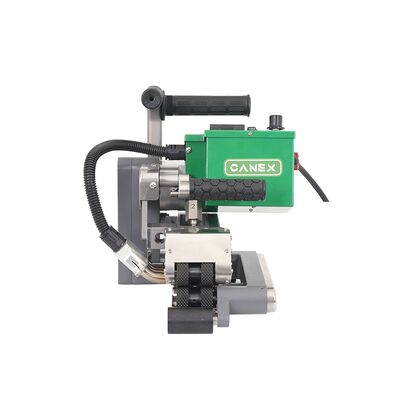

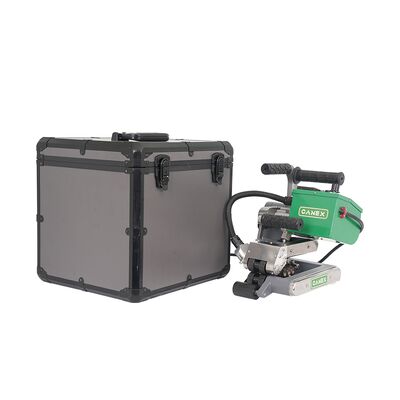

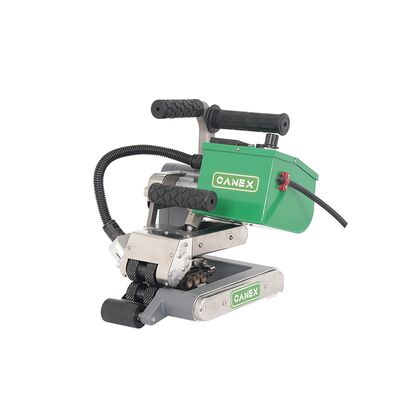

Geomembrane Welding Machine CX500L Same Side Both Sides Film Feeding 1

FAQ

How About The Delivery Time?
Approximately within 10-14 days after received your payment.
Can l Get A Sample From Your Company?Should l Pay For The Express Fee?
We can offer free sample to you. After confirming your order, the sample's freight cost willbe deducted from your order's total cost.
What Are The Use Scenarios Of Geomembrane?
Water conservation engineering, municipal engineering, mining, fishery, agriculture, environmental protection, etc.
How Can l Pay?
You can pay by credit card, wire transfer, western union, and paypal, etc.
How To Ship The Machines?
Normally we ship the goods through express such as DHL, FEDEX, UPS.
Do You Test All ltems Before Shipping?
Yes, we have passed 100% testing before delivery.
How To Guarantee The Quality?
Warranty is 5 years, if there are any quality problems, we accept retum or give spareparts for free.
