Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder

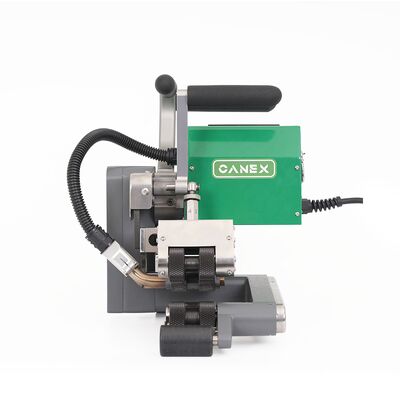

Large Image : Dual-Purpose Machine CX500S Geomembrane Hot Wedge Welder

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Model Number:	CX500S

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$2,100/set

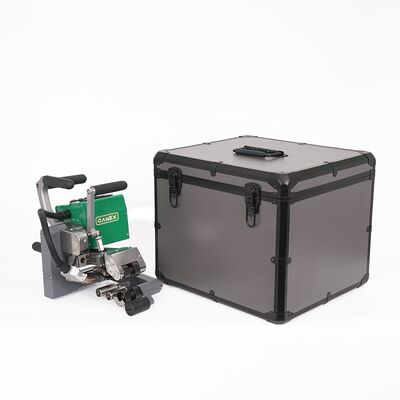

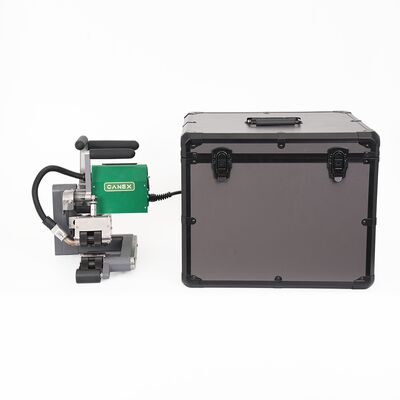

Packaging Details:	Aluminum box + carton
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20sets per day

Contact Now

Detailed Product Description

Input Voltage:	220V, 50Hz	Power:	1800W
Welding Speed:	0-6m/min	Heating Temperature:	0-450℃
Welding Material Thickness:	0.8-3.0mm	Welding Seam Width:	16mm×2, Inner Cavity 16mm
Welding Seam Strength:	≥85% Of Original Material	Overlap Width:	110mm
Highlight:	geomembrane hot wedge welder CX500S , dual-purpose geomembrane welding machine , CX500S hot wedge welder

Geomembrane Welder CX500S

Product Features

Main Frame Design
The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.
Precision Bearings
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
Liquid Crystal Display Screen
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
Pressure Adjustment
The entire bearing of the machine is imported from Germany.
Hot Wedge
Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.
Heating Cartridge
The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.
