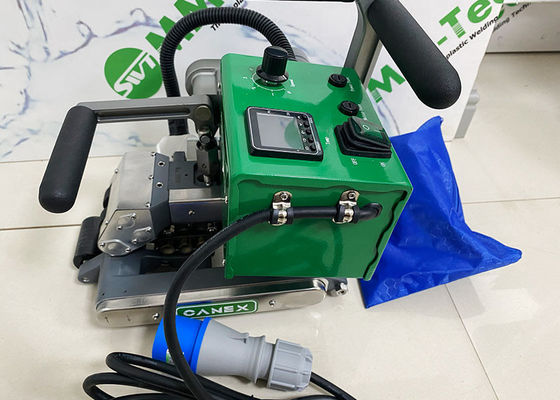

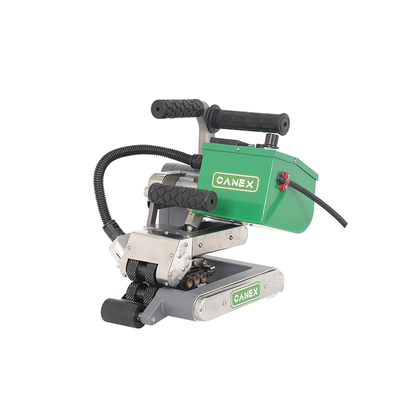

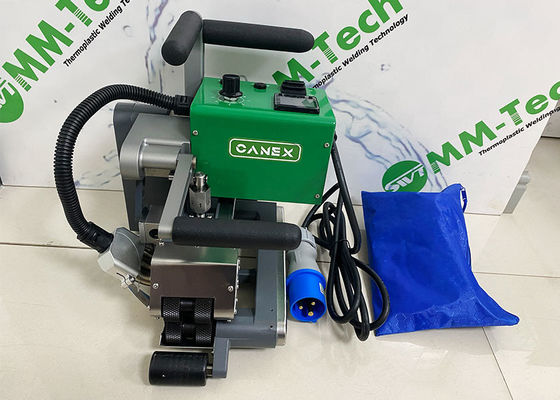

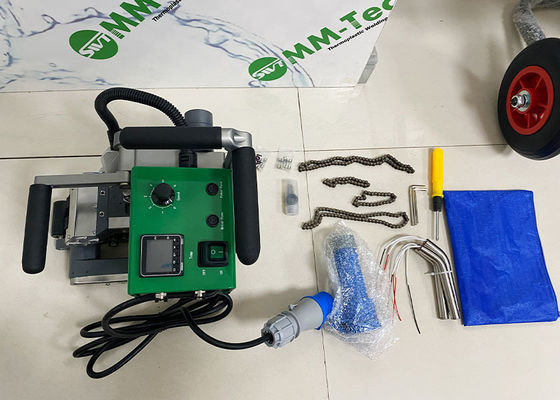

CX500L 220V Geomembrane Welding Machine for Landfills and Fish Ponds 0.8-3mm

CX500L 220V Geomembrane Welding Machine for Landfills and Fish Ponds 0.8-3mm

The CX500L is a dual-purpose welder: single-side feeding for unilateral welding (typically used for biogas tank capping and landfill covers), plus both-side feeding for overlap lap welding. With 1800W output and only 9.5kg weight, it is versatile and easy to handle on site.

Product Advantages:

• Main Frame Design:

  The main frame is made of aviation aluminum.die-cast,and painted on the surface, which is light and strong.

• Precision Bearings:

  The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

• Hot Wedge:

  Equipped with a copper hot wedge the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to loose.

• Guide Rail Part:

  The lower support rail is an eccentric wheel, the upper pressure wheel has a spring, and the guide rail is a copper sleeve stainless steel shaft with strong durability.

• Pressure Adjustment:

  The double handle design is ergonomic.and the pressure nut is equipped with a high-strength spring for easy adjustment.

• Adjustable Eccentric Wheel:

  Can be adjusted according to film thickness.

Application:

• Mining:

  Mime wastewater, waste residue treatemnt, Tailings Leakage Prevention

• Environmental Engineering:

  Landill, Sewage treatment plant

• Aquaculture:

  Aquaculture ponds, fish ponds, shrimp ponds, etc,

Application Case – CX500L Geomembrane Welder for Southeast Asian Aquaculture

A shrimp and tilapia farm in southern Thailand expanded its ponds to scale up production. Local soil was sandy and porous, and seasonal rainfall fluctuation caused serious seepage; without a reliable liner, the farm wasted water, raised energy costs for pumping, and risked leaking nutrient-rich water into nearby soil.

The operator chose the CANEX CX500L (1800W, 9.5kg) to weld HDPE geomembrane liners across multiple ponds. Its dual-purpose design supported both single-side feeding for liner edges and both-side overlap lap welding, fitting different pond layouts. The copper hot wedge produced strong double seams with a leak-test cavity, allowing simple on-site air pressure checks before filling water. The adjustable eccentric wheel matched pressure to the film thickness, while the spring-loaded upper wheel kept steady feeding over long pond edges.

After installation, the ponds held stable water levels through both wet and dry seasons. Seam inspections passed without major rework, and the compact, lightweight machine could be moved easily between remote ponds. For Southeast Asian aquaculture projects where durable, watertight and cost-effective lining is essential, the CX500L delivered dependable field performance.
