30mm Thick PP Sheet Butt Fusion Welding Machine For Fabricating Water Tanks For Fire Trucks

Large Image : 30mm Thick PP Sheet Butt Fusion Welding Machine For Fabricating Water Tanks For Fire Trucks

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE, ISO
Model Number:	SWT-PH4000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD26,000.00 - USD36,000.00 per set
Packaging Details:	Wooden Box
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 sets per year

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Voltage:	380V
Frequency:	50/60Hz	Phase:	3P
Welding Thickness:	3-30 Mm	Max Working Length:	4000 Mm
Welding Materials:	HDPE, PP, PVC,PVDF	Function:	Horizontal Welding, Circular Welding, 90° Vertical Welding By Two Sheets
Certificate:	CE	Application:	Fire Trucks, Swimming Pools, Waste Water Treatment, Etc
Highlight:	30mm PP sheet welding machine , butt fusion welding machine for water tanks , fire truck water tank welding machine

PP Sheet Butt Fusion Welding Machine Market Sector

Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc

PP Sheet Butt Fusion Welding Machine Specification:

Model	SWT-PH4000
Weldable sheet thickness(mm)	3.0-40.0
Max working length(mm)	4000
Roll circle diameter minimum(mm)	500
Air pressure(kg.f/cm²)	6.0-8.0
Energy source(m³/min)	0.0032
Rated voltage(V)	380V
Rated current(A)	23A
Heating Plate Power(kW)	8kW
Rolling Motor Power(kW)	3kW

PP Sheet Butt Fusion Welding Machine Features:

Our machine is suitable for all types of thermo plastic sheet (PP, HDPE, HDPE, PVDF, PVC), with welding thickness 3-30mm.
Our machine support horizontal welding, circular welding and 90° vertical welding by two sheets.

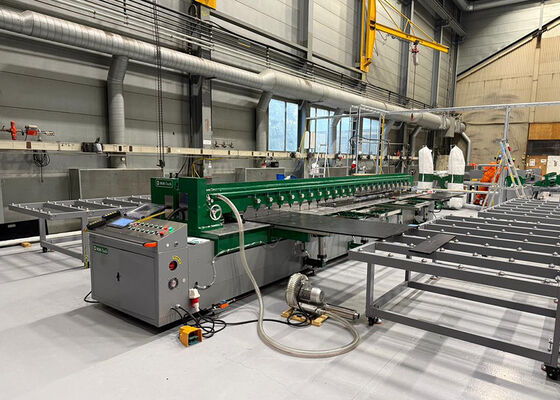

PP Sheet Butt Fusion Welding Machine Exhibition:

30mm Thick PP Sheet Butt Fusion Welding Machine For Fabricating Water Tanks For Fire Trucks 0

After-Sales Service:

We can provide free training service to our customers at our factory.

We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.

Tag:

Contact Person: Tony Bone

Tel: +8616619970365

Fax: 86-311-68009658
