3M HDPE Sheet Butt Welding Machine Deployed in France Biggest Factory

Large Image : 3M HDPE Sheet Butt Welding Machine Deployed in France Biggest Factory

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE, ISO
Model Number:	SWT-PH4000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD22,000.00 - USD26,000.00 per set
Packaging Details:	Wooden Box
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 sets per year

Contact Now

Detailed Product Description

Product Name:	3M HDPE Sheet Butt Welding Machine	Voltage:	380V
Frequency:	50/60Hz	Phase:	3P
Welding Thickness:	3-30 Mm	Max Working Length:	3000 Mm
Welding Materials:	HDPE, PP, PVC,PVDF	Function:	Horizontal Welding, Circular Welding, 90° Vertical Welding By Two Sheets
Certificate:	CE	Application:	Fire Trucks, Swimming Pools, Waste Water Treatment, Etc
Highlight:	HDPE sheet welding machine , plastic sheet butt welder , industrial HDPE welding equipment

3M HDPE Sheet Butt Welding Machine Sector

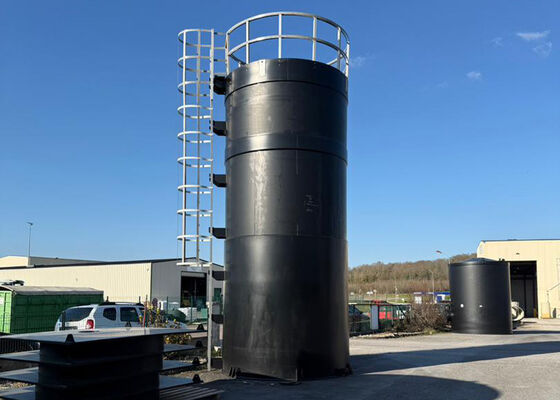

Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc

3M HDPE Sheet Butt Welding Machine Specification:

Model	SWT-PH3000
Weldable sheet thickness(mm)	3.0-30.0
Max working length(mm)	3000
Roll circle diameter minimum(mm)	500
Air pressure(kg.f/cm²)	6.0-8.0
Energy source(m³/min)	0.0032
Rated voltage(V)	380V
Rated current(A)	15.5A
Heating Plate Power(kW)	6kW
Rolling Motor Power(kW)	3kW

Sheet Butt Welder Features:

Our machine is suitable for all types of thermo plastic sheet (PP, HDPE, HDPE, PVDF, PVC), with welding thickness 3-30mm.
Our machine support horizontal welding, circular welding and 90° vertical welding by two sheets.

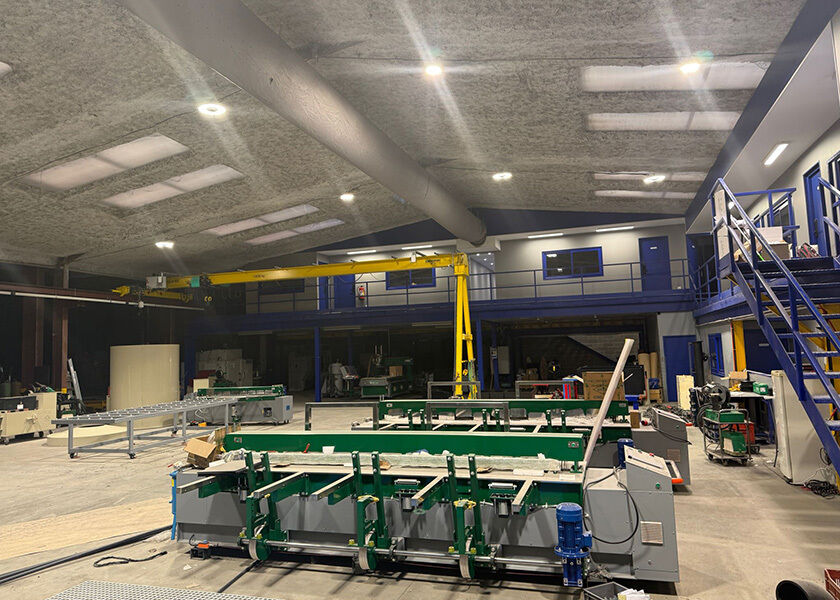

Sheet Butt Welder Exhibition:

3M HDPE Sheet Butt Welding Machine Deployed in France Biggest Factory 0

After-Sales Service:

We can provide free training service to our customers at our factory.

We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.
