90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating

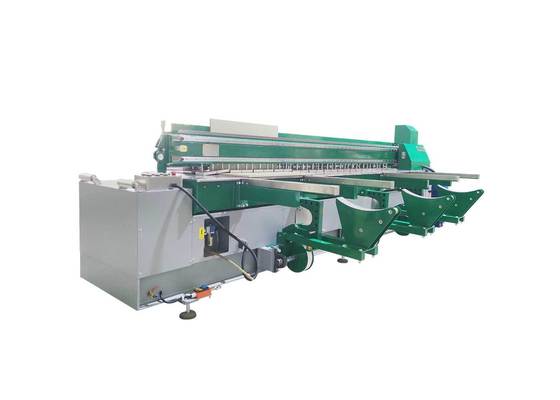

Large Image : 90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$11,500-US$16,700/set
Delivery Time:	Within 7 days
Payment Terms:	L/C, D/A, D/P, Western Union, T/T, PayPal

Contact Now

Detailed Product Description

Model:	SWT-PH3000	Welding Thickness:	3.0-30.0mm
Roll Circle Min Diameter:	400mm	Rated Voltage:	380V
Frequency:	50/60Hz	Rated Current:	13.6A
Max. Working Length:	3000mm	Air Pressure:	4.0-8.0kg.f / Cm²
Highlight:	90 Degree Pp Sheet Welding Machine , Pp Sheet Welding Machine Butt Fusion

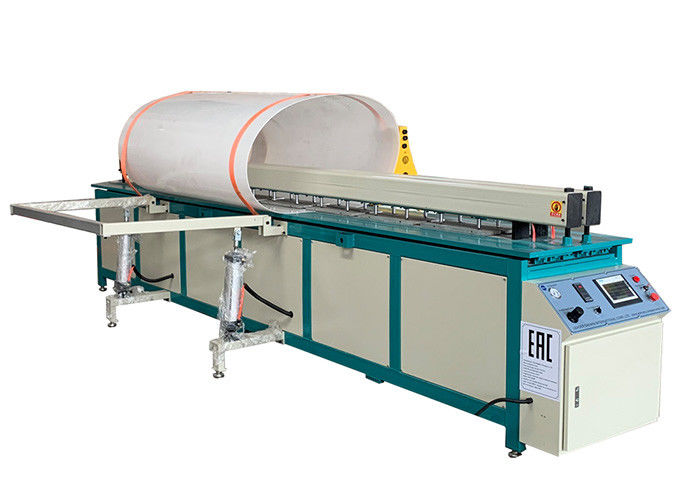

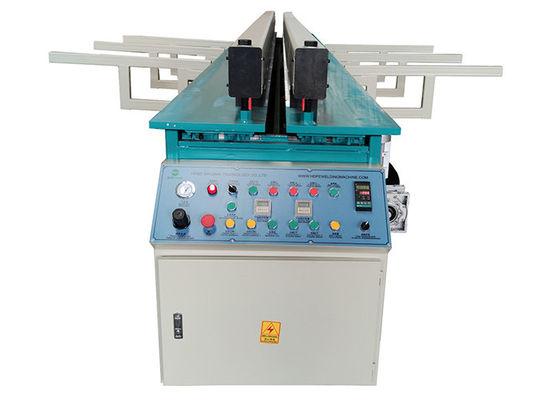

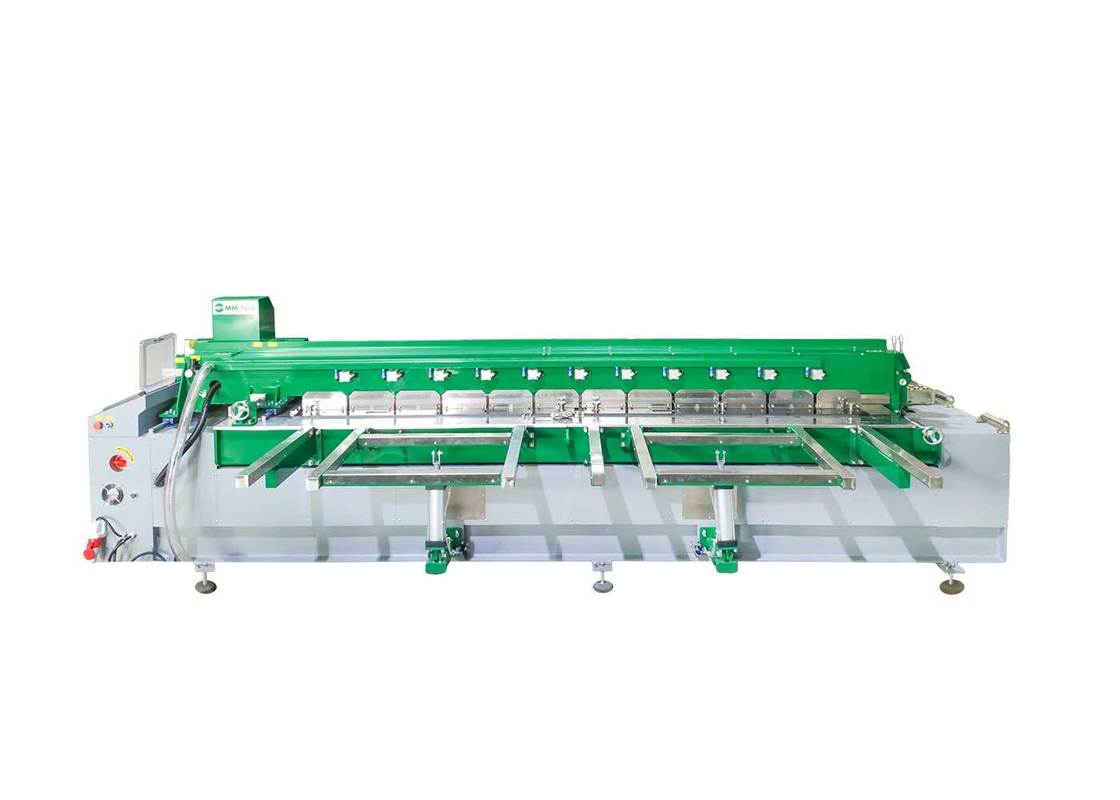

SWT-PH3000 CNC CE Approved PP Sheet Butt Fusion 90° Welding Machine

PP Sheet Butt Fusion Welding Machine Introduction

The surface of the heating plate is coated with Teflon.
It is suitable for butt fusion welding, 90° butt fusion welding, rolling of thermoplastic materials like PP, PE, PVDF, PVC, PPN, etc.
Scope of Application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems, and other industries.

PP Sheet Butt Fusion Welding Machine Specifications

Model	SWT-PH3000
Welding Thickness(mm)	3.0-30.0
Max. Woking Length(mm)	3000
Roll Circle Min Diameter(mm)	400
Air Pressure(kg.f / cm²)	4.0-8.0
Energy Source(m³ / min)	0.0052
Rated Voltage(V)	380V, 50/60Hz
Rated Current(A)	13.6A
Heating Power(kW)	6kW
Power of Rolling Power(kW)	1.5kW
Heating Mode	Overall Heating
Drum Institutions(parts)	Optional
Machine Size(L×W×H)mm	375012001200
PacKING Size(L×W×H)mm	390013001450
N.W KGS	1350KG
G.W KGS	1500KG
