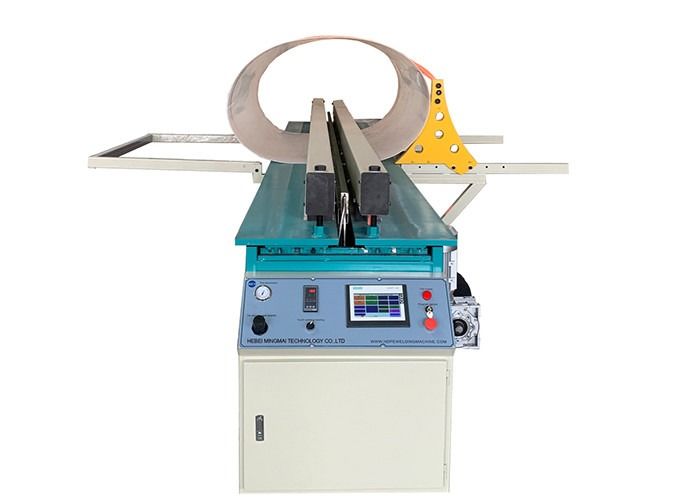

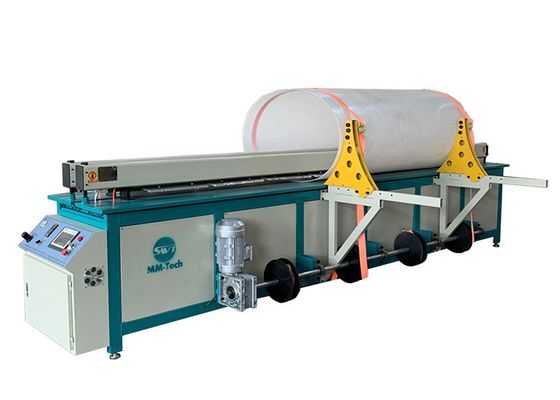

380V Plastic Sheet Welder Press Button Control For Making Conservancy Tanks

Large Image : 380V Plastic Sheet Welder Press Button Control For Making Conservancy Tanks

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH6000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$29,000 - $34,200/set
Delivery Time:	Within 7 days
Payment Terms:	L/C, D/A, D/P, Western Union, T/T, PayPal
Supply Ability:	600/set per month

Contact Now

Detailed Product Description

Model:	SWT-PH6000	Welding Thickness:	3.0-30.0mm
Roll Circle Min Diameter:	550	Rated Voltage:	380V
Frequency:	50/60Hz	Rated Current:	13.6A
Heating Power:	12KW	Max. Working Length:	6000mm
Air Pressure:	6.0-8.0kg.f / Cm²
Highlight:	380V Plastic Sheet Welder , Plastic Sheet Welder 380V

Sheet Butt Welding Equipment for Making Conservancy Tanks PP PE PVC PVDF Material Model SWT-PH6000

Sheet Butt Welding Equipment Introduction

The surface of the heating plate is coated with Teflon.

It is suitable for butt fusion welding, 90° butt fusion welding, rolling of thermoplastic materials like PP, PE, PVDF, PVC, PPN, etc.

Scope of Application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems, and other industries.

Sheet Butt Welding Equipment Technical Sheet

Model	SWT-PH6000
Welding Thickness(mm)	3.0-30.0
Max. Woking Length(mm)	6000
Roll Circle Min Diameter(mm)	550
Air Pressure(kg.f / cm²)	6.0-8.0
Energy Source(m³ / min)	0.0075
Rated Voltage(V)	380V, 50/60Hz
Rated Current(A)	13.6A
Heating Power(kW)	12kW
Power of Rolling Power(kW)	1.5kW
Heating Mode	Overall Heating
Drum Institutions(parts)	Optional
Machine Size(L×W×H)mm	690012001200
PacKING Size(L×W×H)mm	705013001450
N.W KGS	1900KG
G.W KGS	2100KG

Sheet Butt Welding Equipment Application

380V Plastic Sheet Welder Press Button Control For Making Conservancy Tanks 0

Quality Guarantee

24 months. If any parts broken or doesn't work under normal working, we will provide them for free.
