SWT - PH3000 1500W DVS PP Weld Industrial Tank Sheet Butt Fusion Welding Machine
Sheet Butt Fusion Welding Machine Brief Introduction:
SWT series Butt Fusion Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
Sheet Butt Fusion Welding Machine Specification:
| Model |
SWT-PH3000 |
SWT-PH4000 |
| Max Working length(mm) |
3000 |
4000 |
| Gross weight(kg) |
300 |
450 |
| Welding material thickness(mm) |
3.0-30.0 |
| Welding Material Length(mm) |
3000 |
4000 |
| The minimum diameter welded pipe(mm) |
400 |
450 |
| Power supply(V) |
380 |
380 |
| Welding material |
PPPE PVDF... |
PPPE PVDF... |
Sheet Butt Fusion Welding Machine Features:

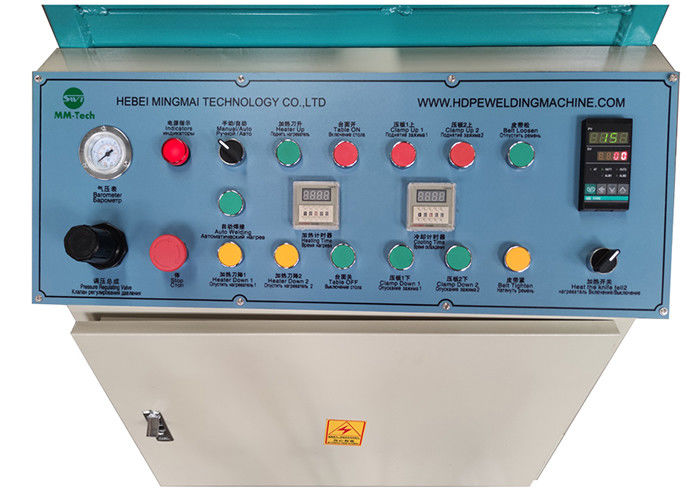

1. The PLG,touch screen control system, can adjusting the heating temperture, time and pressure accoding to the parematers of the material automatically.
2. 3.0 meters above type heat to make large model by using in processing small workpieces also has small type when the advanges of energy of enery saving.
3. The control system adopts Japanese imported components, stable performacne and durability.
4. The integreation of the new frame, high reliability of the transmission mechanism, stable work, excellent performance.
5.Professional corrosion resistant surface treatment technology, the surface coating the years.
6. Patented Automatic Volume circular system, fully automated, without human intervention, safe and fast.
7. The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
8. suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…)
9. Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
10. 3mm-50mm welding capabilities, special welding thickness of up to 70mm.
Sheet Butt Fusion Welding Machine Application:
FAQ:
Q: What's the shape of sheet can be welded?
A: Circle or square
Q: What's the welding length can reach?
A: 2000-6000mm
Q: What's the welding mode?
A: Circle/ overlap/ 90℃
Q: Can you put our design and logo on products?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q: What's the payment term?
A: We can accept for PAPAL, T/T. Any other payment as your request.
.
