PP PVDF Plastic Sheet Butt Fusion Welding Equipment Press Button Control

SWT - PH6000 PP PVDF Support Customized DVS Sheet Butt Fusion Welder

Sheet Butt Fusion Welder Brief Introduction:


SWT-PH6000 sheet butt fusion welder the overall machine concept creates the ideal requirements for quality-assured welding in accordance with DVS 2208-1.

The PVC,PE Board Butt Fusion Machine is accurate, efficient & easy-to-use, and can be used to weld in horizontal and circular butt fusion.

Sheet Butt Fusion Welder Specification:

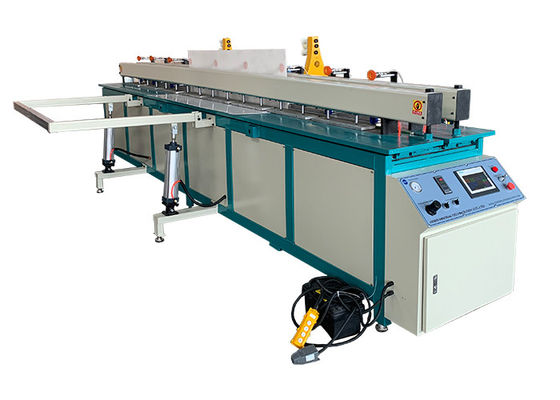

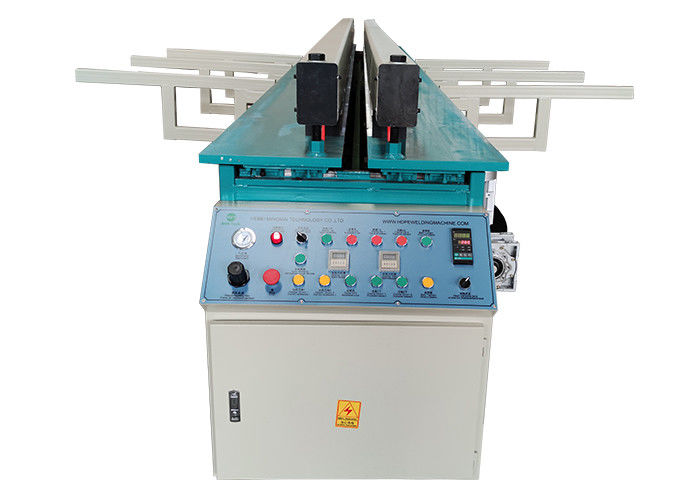

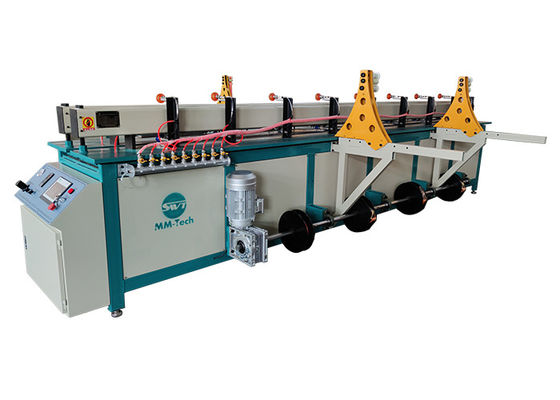

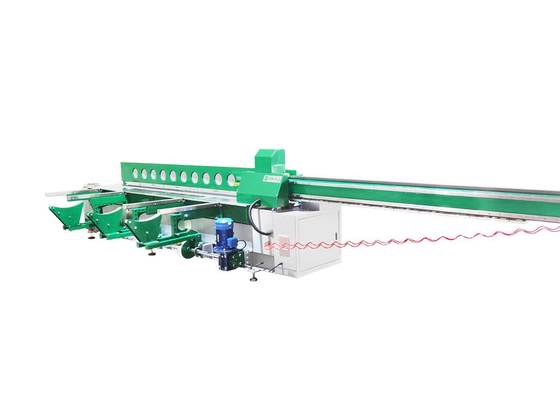

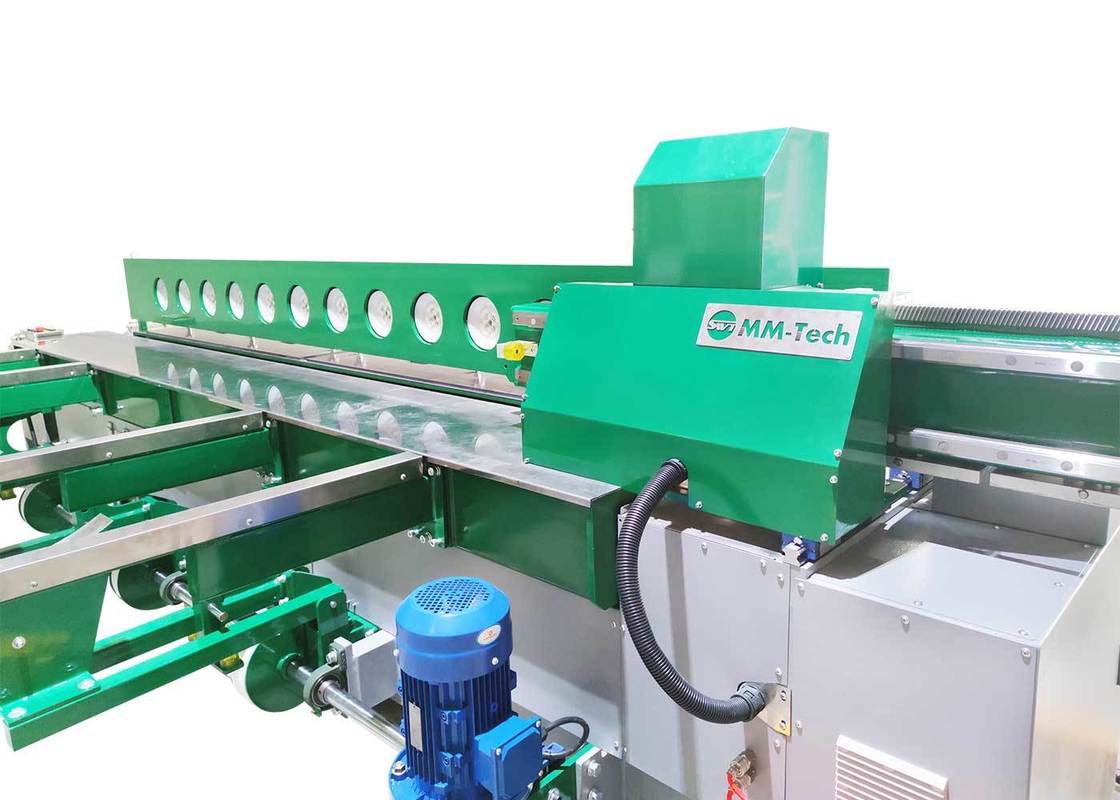

Sheet Butt Fusion Welder Detailed Image:


Sheet Butt Fusion Welder Features:

1.The electric system is placed in electric cabinet concentratedly, so it's convenient for maintenance and check.
2.Press button control makes the operation easy and convenient.
3.The working panel's material is Q345 manganese, which's featured as non-being heated distortion; The platen's material is aluminum, and for each platen there're two air cylinders providing the power, ensuring the compressive stress is very strong.
4.The heating pipe is inserted through the heating knife, so it's easy and convenient to replace the heating elements. The material of heating knife is imported grade aluminum, with teflon coated. It has the advantage of non-being heated distortion and non-stick.
5.Specially designed rolling device makes the rolling work easy and labor saving.
6.Specially designed LED lights can make you observe the process of welding clearly.
