4 Meters Plastic Sheet Bending Machine , Plastic Sheet Welder 12KW Heating

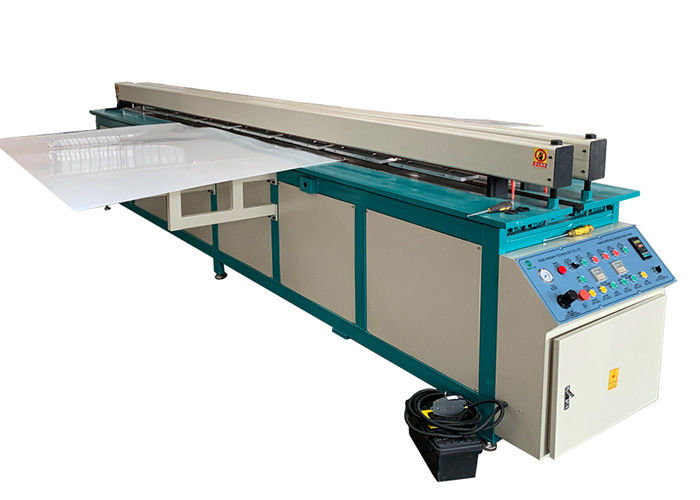

Large Image : 4 Meters Plastic Sheet Bending Machine , Plastic Sheet Welder 12KW Heating

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-ZW4000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$11500-$12500/ set
Packaging Details:	Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets per week

Contact Now

Detailed Product Description

Product Name:	Sheet Bending Welder	Rated Voltage:	380V 50/60Hz
Air Pressure(kg.f/cm²）:	Overall Heating	Packing Diamensions:	525020001850
Bending Length:	4000mm	Bending Angle:	40-150°
Rated Current:	48A	Heating Power:	12KW
Warranty:	2 Years	CE Certification:	Yes
Highlight:	4 Meters Plastic Sheet Bending Machine , Plastic Sheet Welder 12KW , Plastic Sheet Bending Machine 12KW

SWT - ZW4000 4 Meters Piping Inported Heating Knife Sheet Bending Welder

Sheet Bending Welder Brief Introduction:

ZW series Sheet Bending Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.
The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.

Sheet Bending Welder Specification:

Specification/Size	SWT-ZW4000
Weldable sheet thickness(mm)	3.0-30.0
Bending Angle(℃)	40-150℃
Air pressure (kg.f/c㎡)	6.0-8.0
Rated voltage(V)	380V, 50/60Hz
Rated current(A)	48A
Heating Power(KW)	12KW
External dimensions(LWH) mm	510019001600
Packing dimensions(LWH )mm	525020001850
N.W KGS	1550kg
G.W KGS	1650kg

Sheet Bending Welder Scope of Application:

Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.

Main Functions:
1.Welding function
-- Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.

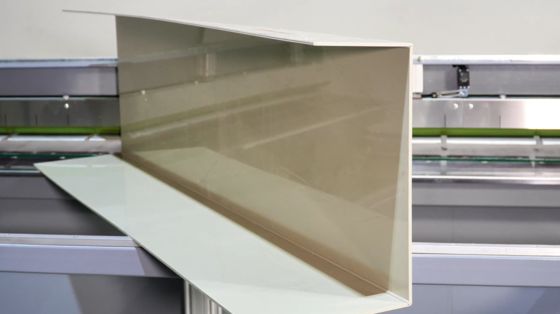

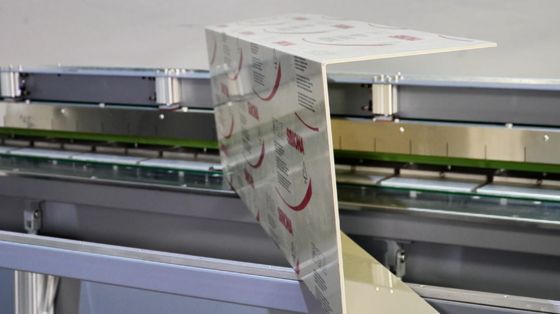

2.Bending function:
-- Bender plastic plate from 2-100 degree

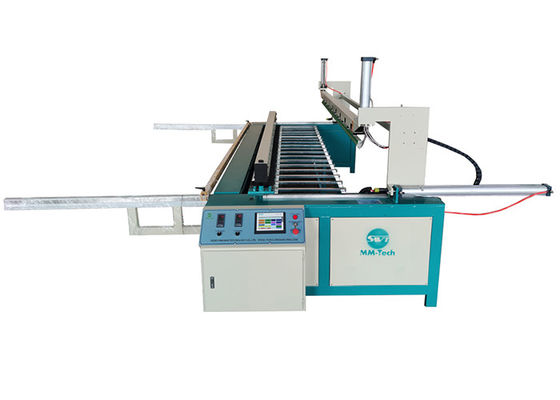

Images of Sheet bending welding machine with manual button:

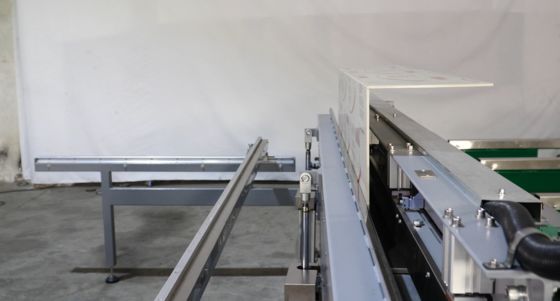

4 Meters Plastic Sheet Bending Machine , Plastic Sheet Welder 12KW Heating 2

How to transport?

The goods will be shipped from Qingdao, China to the destination port in your country.
