48A Plastic Sheet Bending Machine For Thickness 3mm-30 Mm

Large Image : 48A Plastic Sheet Bending Machine For Thickness 3mm-30 Mm

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-ZW3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 11,000 - 13,800 / SET
Packaging Details:	1 Wooden Case
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal

Contact Now

Detailed Product Description

Name:	SWT-ZW4000	Sheet Thickness:	3.0-30.0
Bending Length:	4000	Bending Angle:	40-150°
Air Pressure(kg.f/cm²):	6.0-8.0	Rated Current:	48A
Rated Voltage:	380V, 50/60Hz	Function::	Bending Welding
Dimension(mm):	510019001600	Scope Of Application:	PP PVC PVDF PPN PE
Highlight:	48A Plastic Sheet Bending Machine , Plastic Sheet Bending Machine 380V

Bending Welding Machine for Welding PP Sheet Thickness from 3 - 30 mm

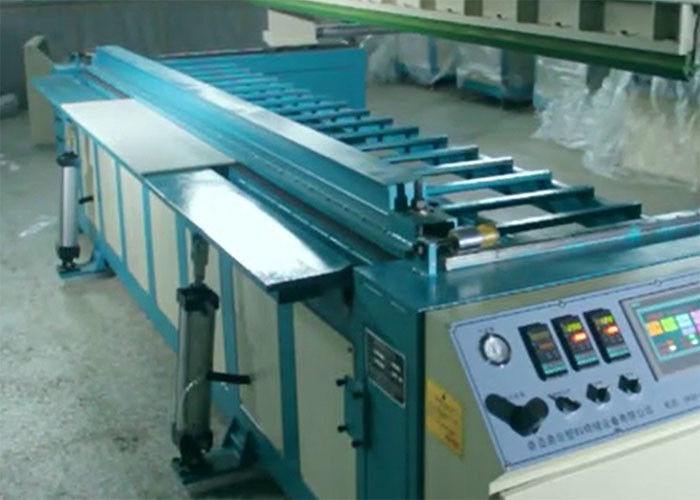

Bending Welding Machine Profile

SWT-ZW4000 PVC Sheet Bending Machine is available to weld PP sheet thickness from 3 - 30mm.
Bending length(Max.) 4000mm

Bending Welding Machine Datasheet

Name	SWT-ZW4000
Sheet thickness(mm)	3.0-30.0
Bending length(mm)	4000
Bending angle	40 - 150°
Air pressure(kg.f/cm²)	6.0-8.0
Rated voltage	380V, 50/60Hz
Heating power	12kW
Rated current	48A
External dimension(LWH)mm	510019001600
Packing dimension(LWH)mm	525020001850
N.W	1550KG
G.W	1650KG
