CE Certification Plastic Sheet Welding Bending Machine For 3.0mm - 25.0mm Sheet Thickness

Large Image : CE Certification Plastic Sheet Welding Bending Machine For 3.0mm - 25.0mm Sheet Thickness

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PZ3000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$10000-$11150/ set
Packaging Details:	Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets per week

Contact Now

Detailed Product Description

Product Name:	Combined Bending And Welding Equipment	Packing Dimensions:	395012301220
Rated Voltage:	380V, 50/60Hz	Warranty:	2 Years
Bending Angle:	0-100°	Bending Heating Power:	9 KW
Welding Heating Power:	6 KW	Max Working Length(mm):	3000
Rated Current:	60A	CE Certification:	Yes
Highlight:	CE Plastic Sheet Welding Bending Machine , Sheet Welding Bending Machine For 3.0mm

SWT - PZ3000 Plastic Sheet Customized Combined Bending And Welding Equipment

Brief Introduction:

SWT series Sheet Bending Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF. The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.

Sheet Bending Machine Specification:

Item	SWT-PZ3000 Combined Bending And Butt Welding Equipment
Sheet Thickness	3.0-25.0mm
Max.working length	3000mm
Air pressure(kg.f lcm2)	6.0-8.0
Rated voltage	380V,50/60Hz
Welding Heating power	6kW
Roll circle diameter minimum	500mm
Rated Current	60A
Power of Rolling Motor	1.5kW
Bending angle()	0-100°
Bending heating power	9kW
Drum institutions motor power	1.5kW

SWT-PZ 3000 both bending and welding machine:

Welding function:

Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.

Bending function:

Bender plastic plate from 2-100 degree.

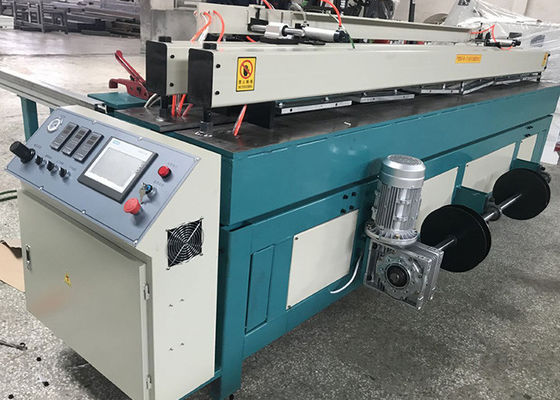

CE Certification Plastic Sheet Welding Bending Machine For 3.0mm - 25.0mm Sheet Thickness 0

Both Bending And Welding Machine Application:

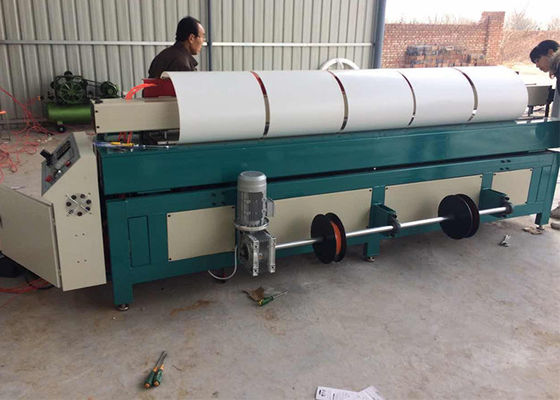

CE Certification Plastic Sheet Welding Bending Machine For 3.0mm - 25.0mm Sheet Thickness 2

Company Profile:

Hebei Mingmai Technology Co.,LTD (MM-Tech) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China. Our main products:butt fusion machine,socket fusion machine,electrofusion machine,hot air welders,hot air welding machine, extrusion welders, geomembrane overlap wedge welders,band saw,cutting machine...
