2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm

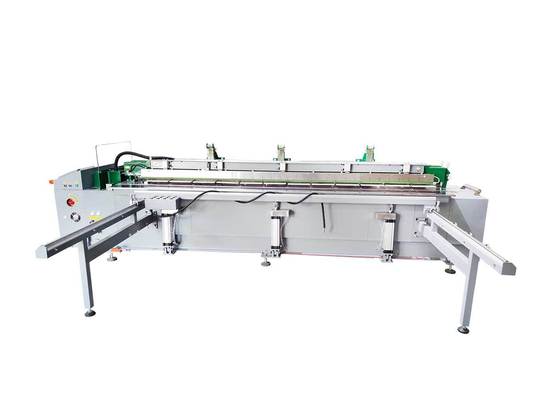

Large Image : 2In1 Plastic Sheet Bending Machine For PVDF Sheet Length Max 3000mm

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PZ3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 20,000 - USD 24,000 / SET
Packaging Details:	Plywood Case
Delivery Time:	within 7 days
Payment Terms:	Western Union, T/T, PayPal
Supply Ability:	600 SETS / MONTH

Contact Now

Detailed Product Description

Model:	SWT-PZ3000	Roll Circle Diameter Min:	500
Rated Current:	60A	Bending Heating Power:	9kW
Welding Heating Power:	6kW	N.W:	1400KG
G.W:	1500KG	Brand:	MM-TECH
Weldable Sheet Thickness:	3 - 25mm	Max Working Length:	3000mm
Bending Angle:	0 - 100°	Rated Voltage:	380V, 50/60Hz
Air Pressure(kg.f/cm²):	6.0-8.0	Drum Institutions Motor Power:	1.5kW
External Dimensions:	385011001100mm	Packing Dimensions:	395012301220mm
Highlight:	2In1 Plastic Sheet Bending Machine , Plastic Sheet Bending Machine 3000mm , Plastic Sheet Bending Machine For PVDF

2 in 1 Bending Machine Butt Fusion Welding Equipment for PVDF Sheet Length Max 3000mm

Sheet Bending Machine Advantages

2 in 1 sheet bending and sheet butt fusion welding
Working length up to 3000mm
Weldable sheet thickness from 3mm to 25mm
Suitable for thermoplastic material such as PE PP PVC PVDF

Sheet Bending Machine Technical Specifications

Model	SWT-PZ3000
Weldable sheet thickness	3 - 25mm
Max working length	3000mm
Bending angle	0 - 100°
Roll circle diameter min	500
Air pressure(kg.f/cm²)	6.0 - 8.0
Rated voltage	380V, 50/60Hz
Rated current	60A
Bending heating power	9kW
Welding heating power	6kW
Drum institutions motor power	1.5kW
External dimensions	385011001100mm
Packing dimensions	395012301220mm
N.W	1400KG
G.W	1500KG
