Brief Introduction:
SWT series Sheet Bending Welding Machine are suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF. The machine is designed according to DVS 2208, and can operate in compliance with the DVS 2207.
Sheet Bending Machine Specification:
|
Model No.SWT-PZ4000
Combined Bending And Butt Welding Equipment
|
| Sheet Thickness |
3.0-25.0mm |
| Max.working length |
4000mm |
| Air pressure(kg.f lcm2) |
6.0-8.0 |
| Rated voltage |
380V,50/60Hz |
| Welding Heating power |
8kW |
| Roll circle diameter minimum |
500mm |
| Rated Current |
80A |
| Bending angle(8) |
0-100° |
| Bending heating power |
12kW |
| Drum institutions motor power |
1.5kW |
Product Features:
1.Versatile use:
Welding function and bending function are both available in our model.
2.Efficient and accurate:

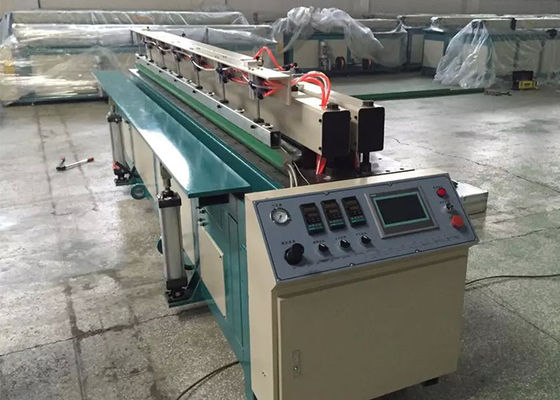

Siemens control system and touch screen control mode make the control efficient and accurate.
3.Easy to use:
Our strong point are to design easy-to-use equipments, not complicated ones.
You can finish every function within 5 steps with our model.
4.Wide applicability:
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN), with material
thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers'
request.
5.Stable performance:
With most-to-up technology and top designers we successfully design and manufacture for customers.
The plates processed by our model have good-looking appearance and the angle is very strong.
6.Easy-to-maintain:
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.
CE Certification:

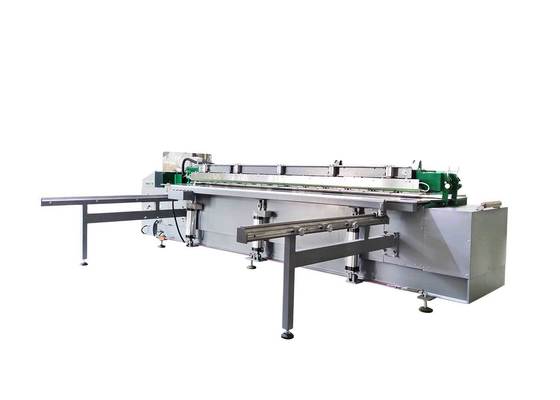

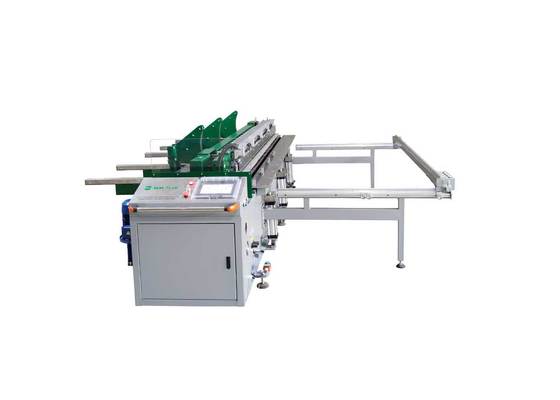

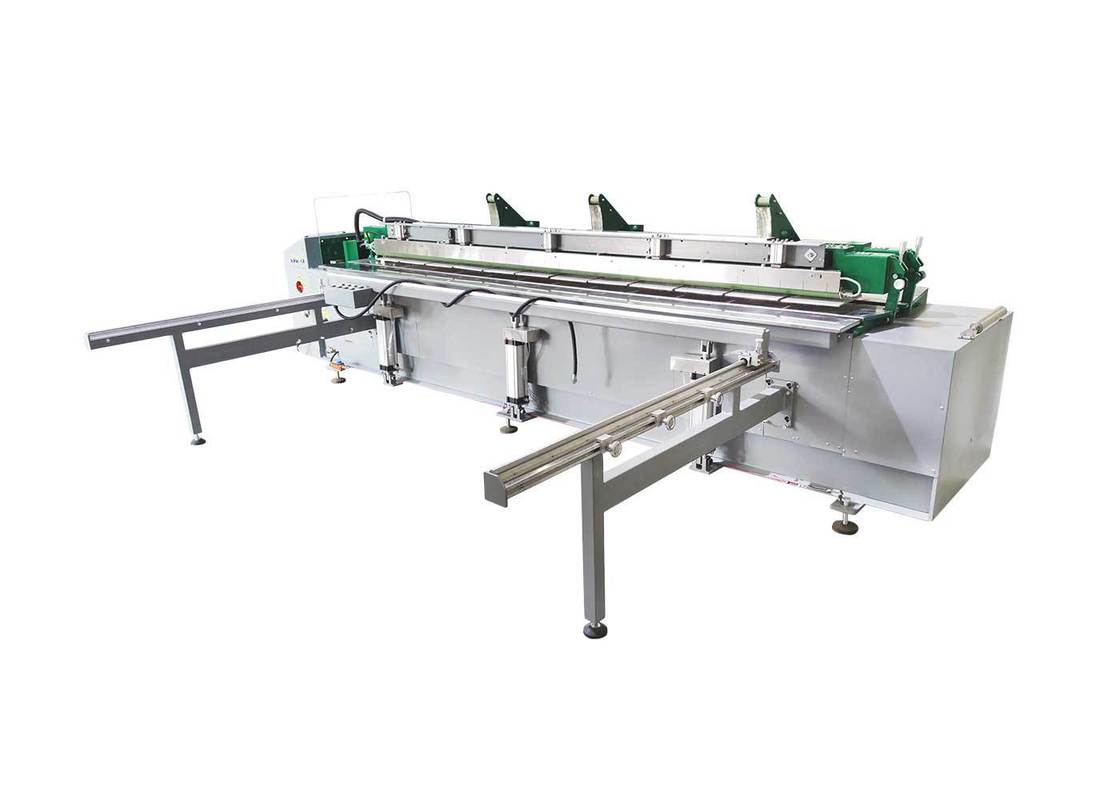

SWT-PZ 4000 Both Bending And Welding Machine:
Welding function:

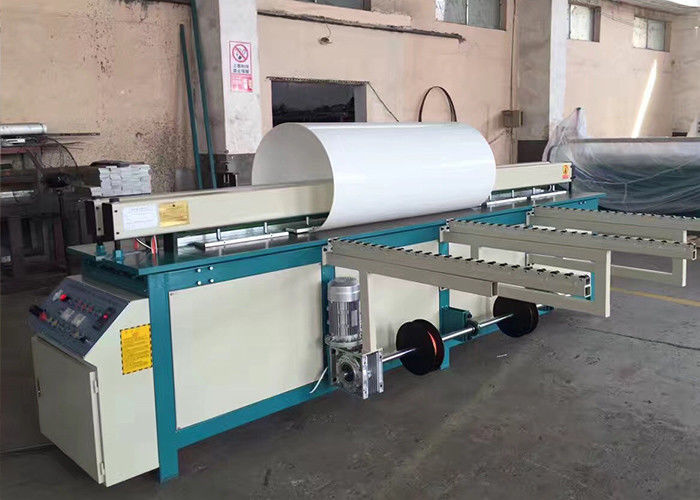

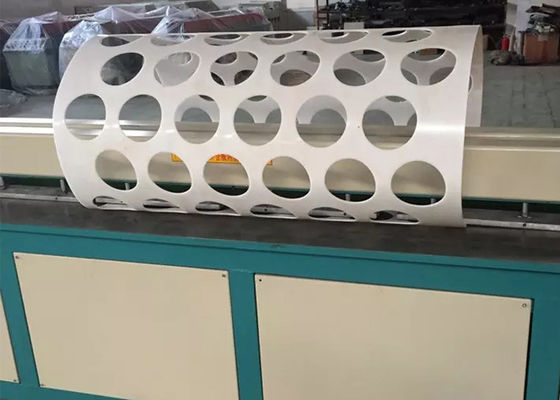

Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.
Bending function:
Bender plastic plate from 2-100 degree.
Both Bending And Welding Machine Application:
