Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling

Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling
Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling

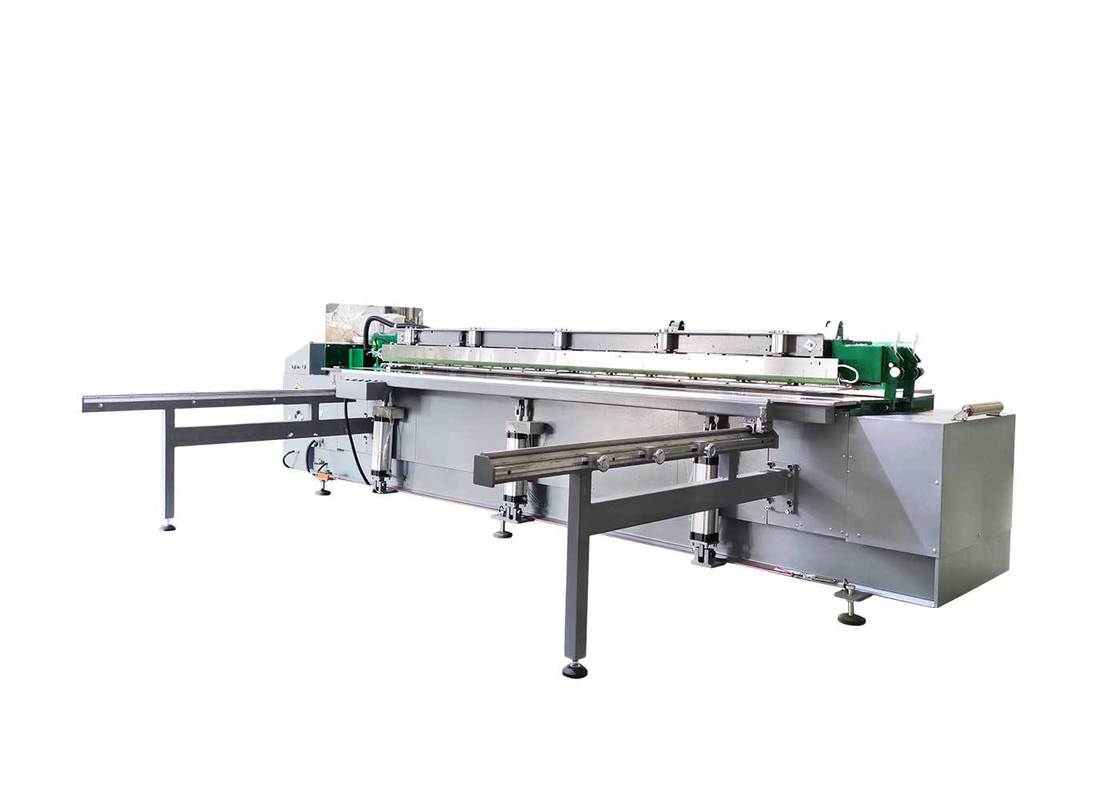

Large Image :  Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling

Product Details:
Place of Origin: HEBEI,CHINA
Brand Name: MM-TECH
Certification: CE
Model Number: SWT-PZ4000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 20,000 - USD 24,000 / SET
Packaging Details: Plywood Case
Delivery Time: within 7 days
Payment Terms: Western Union, T/T, PayPal
Supply Ability: 600 SETS / MONTH
Contact Now
Detailed Product Description
Model: SWT-PZ4000 Roll Circle Diameter Min: 500
Rated Current: 80A Bending Heating Power: 12kW
Welding Heating Power: 8kW N.W: 1600KG
G.W: 1700KG Brand: MM-TECH
Weldable Sheet Thickness: 3 - 25mm Max Working Length: 4000mm
Bending Angle: 0 - 100° Rated Voltage: 380V, 50/60Hz
Air Pressure(kg.f/cm²): 6.0-8.0 Drum Institutions Motor Power: 1.5kW
External Dimensions: 5000*1100*1200mm Packing Dimensions: 5100*1250*1370mm
Highlight:

HDPE Plastic Sheet Bending Machine

,

Multifunction Plastic Sheet Bending Machine

,

Plastic Sheet Bending Machine Integrated Rolling



Multi-Function HDPE Sheet Bending Machine Intergrated 90° Rolling Butt Fusion Welding



Sheet Bending Machine Features





  • Working length up to 4000mm
  • Weldable sheet thickness from 3mm to 25mm
  • Suitable for thermoplastic material like PE PP PVC PVDF
  • Multi-Function include Bending, 90°, Rolling, Butt Fusion Welding

Sheet Bending Machine Data Reference



Model SWT-PZ4000
Weldable sheet thickness 3 - 25mm
Max working length 4000mm
Bending angle 0 - 100°
Roll circle diameter min 500
Air pressure(kg.f/cm²) 6.0 - 8.0
Rated voltage 380V, 50/60Hz
Rated current 80A
Bending heating power 12kW
Welding heating power 8kW
Drum institutions motor power 1.5kW
External dimensions 5000*1100*1200mm
Packing dimensions 5100*1250*1370mm
N.W 1600KG
G.W 1700KG



Finished products by Multi-Function Sheet Welding Machine



Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling 0





Supreme Service



Machine Quality Guarantee: 24 months. If any parts broken or doesn't work under normal operating, we are free to offer.
