Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm

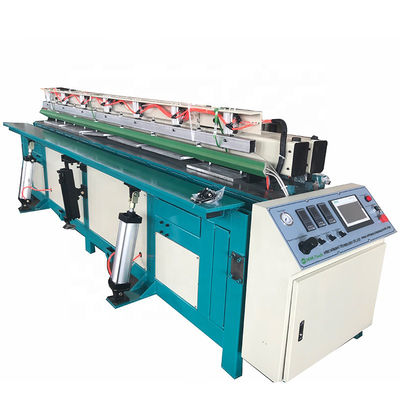

Large Image : Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH3000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$12000-$13200 set
Packaging Details:	Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets per week

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Rated Voltage:	380V 50/60Hz
Heating Mode:	Overall Heating	Packing Diamensions:	390013001450
Weldable Working Length:	3000mm	Roll Circle Diameter Minimum:	400mm
Rated Current:	13.6A	Rolling Motor Power:	1.5 KW
Warranty:	2 Years	CE Certification:	Yes
Highlight:	butt fusion welder soldering 3mm , butt fusion welder soldering 30mm , semi automatic butt fusion welder

Semi - Automatic Button Manual Sheet Butt Fusion Welder For Soldering 3 - 30mm Sheet

Sheet Butt Fusion Welder Brief Introduction:

SWT-PH3000 sheet butt fusion welder is suitable for welding thermoplastic sheets. It can be supported the welding method:
1. welding line
2. welding circular

Sheet Butt Fusion Welding Machine Specification:

	SWT-PH2000	SWT-PH3000
plate thickness(mm)	3-30	3-30
welding effective length(mm)	2000	3000
Minimum diameter(mm)	380	400
Energy source(M fand/min)	0.0032	0.0052
Rated voltage(V)	380	380
Heating method	whole heating	whole heating
Heating power	4KW	6KW
Winding motor power	1.5KW	1.5KW
Dimensions(mm)	285012001200	375012001200
Suitable material	PP PVC PVDF PPN PE etc
Scope of application	Electroplating, environmental protection_ chemical containers, sewage treatment, pipelines, ventilation systems, etc.

Sheet Butt Fusion Welding Machine Features:

* Heating element: Taiwan imported heating knife, the surface is coated with Teflon

* Device equipped with automatic winding device mechanism

* Suitable material: PP,PE,PVDF,PVC,PPN,etc.

* Can be customaized according to customer requirements

* Scope of application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.

Sheet Butt Fusion Welding Machine Application:

Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm 0

Semi Automatic Button Manual Sheet Butt Fusion Welder Soldering 3-30mm 1

Service:

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

.
