SWT-PH2000 3-30mm Board Sheet LCD Touch Butt Fusion Welding Machine

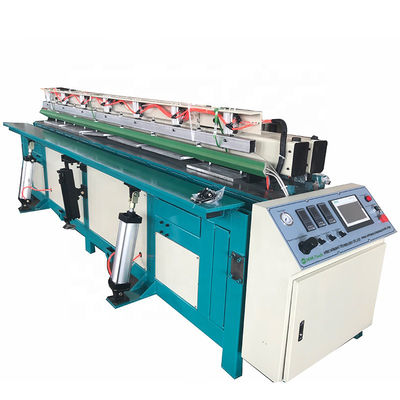

Large Image : SWT-PH2000 3-30mm Board Sheet LCD Touch Butt Fusion Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH2000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$10800-$11700 set
Packaging Details:	Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets per week

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Rated Voltage:	380V 50/60Hz
Heating Mode:	Overall Heating	Packing Diamensions:	300013001450
Weldable Working Length:	2000mm	Roll Circle Diameter Minimum:	380mm
Rated Current:	9A	Rolling Motor Power:	1.5 KW
Warranty:	2 Years	CE Certification:	Yes
Highlight:	LCD Touch Butt Fusion Welding Machine , 3mm Butt Fusion Welding Machine , 30mm Butt Fusion Welding Machine

SWT-PH2000 Sheet Butt Fusion Welding Machine With LCD Touch

Sheet Butt Fusion Welding Machine Description:

This Sheet Butt Fusion Welder for welding 2000mm sheet, it's new steel structure, mechanical synchronous transmission technology, through regulator, in the weld area to achieve uniform pressure. And all actions are cylinder drive, easy to operate, durable.

Sheet Butt Fusion Welding Machine Technical Parameter:

Machine Length:	3000mm
Machine Width:	1300mm
Machine Height:	1450mm
Machine Weight	1000KG
Max.Working Width:	2000mm
Min.Workable Thickness:	3mm
Max.Workable Thickness:	30mm

Sheet Butt Fusion Welding Machine Products:

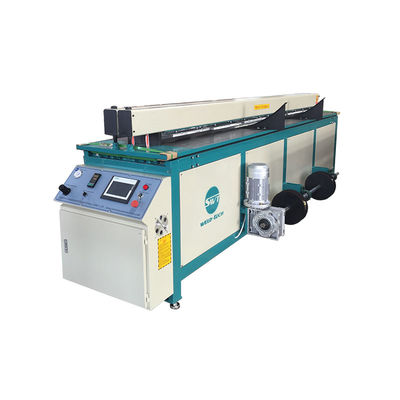

SWT-PH2000 3-30mm Board Sheet LCD Touch Butt Fusion Welding Machine 0

Sheet Butt Fusion Welding Machine Include:

Sheet Butt Fusion Welding Machine Standard Configuration
NO.	Item	QTY
1	sheet butt fusion machine	1 set
2	tool box	1pcs
3	hexagon key	1set
4	screw driver	2pcs
5	wrench	1pcs
6	adjustable wrench	1pcs
7	coupling	10pcs
8	elbow	10pcs
9	plier	1pcs
10	heating element	4pcs
11	pedal	1pcs
12	temperature control	1pcs
13	air filter valve	1 set
14	hose pipe	10m
15	support	1set
16	triangle support	2pcs
17	steel pallet	1pcs
18	plywood case	1pcs

PS:

Please contact Clara, and she will send you additional heating tubes as gift after you confirm the order

Sheet Butt Fusion Welding Machine Packing:

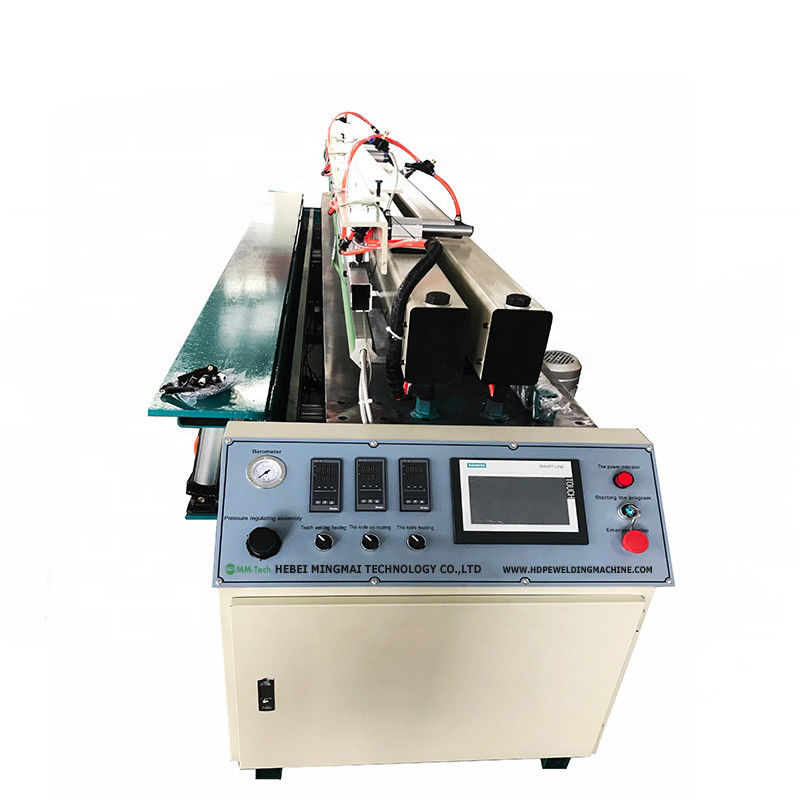

SWT-PH2000 3-30mm Board Sheet LCD Touch Butt Fusion Welding Machine 1

About the Delivery:

We have sufficient stock can dispatch the machine to you immediately.
