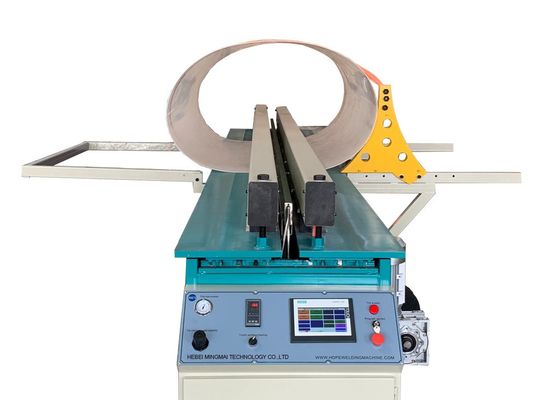

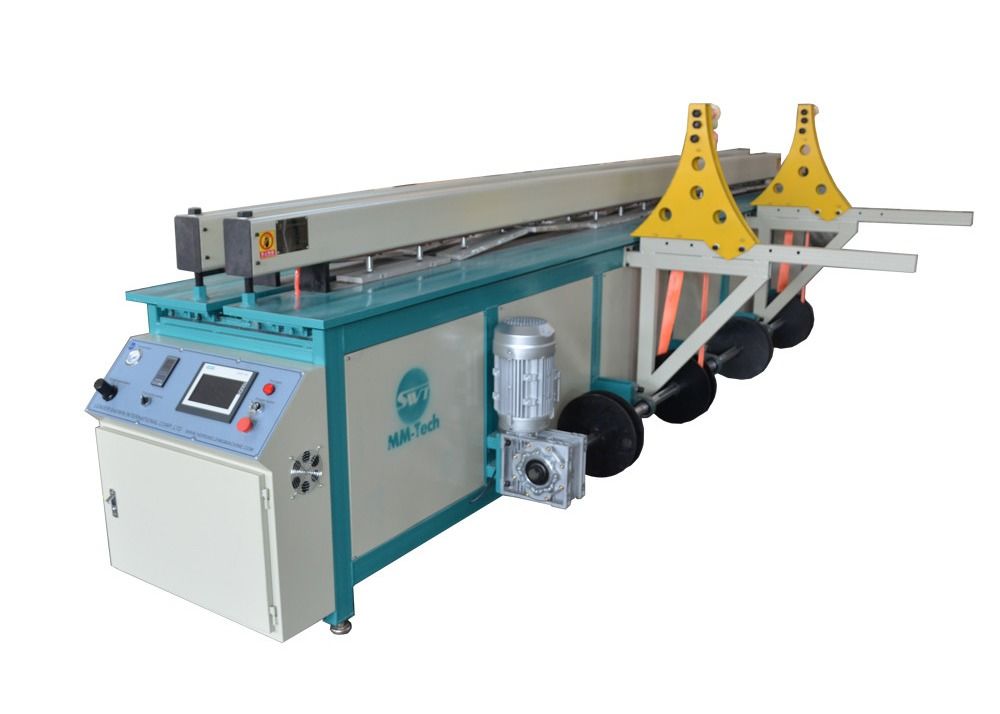

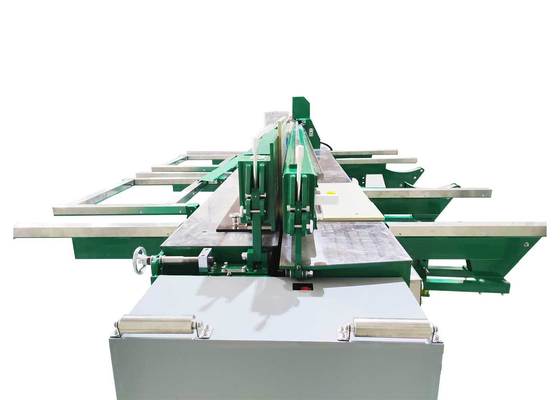

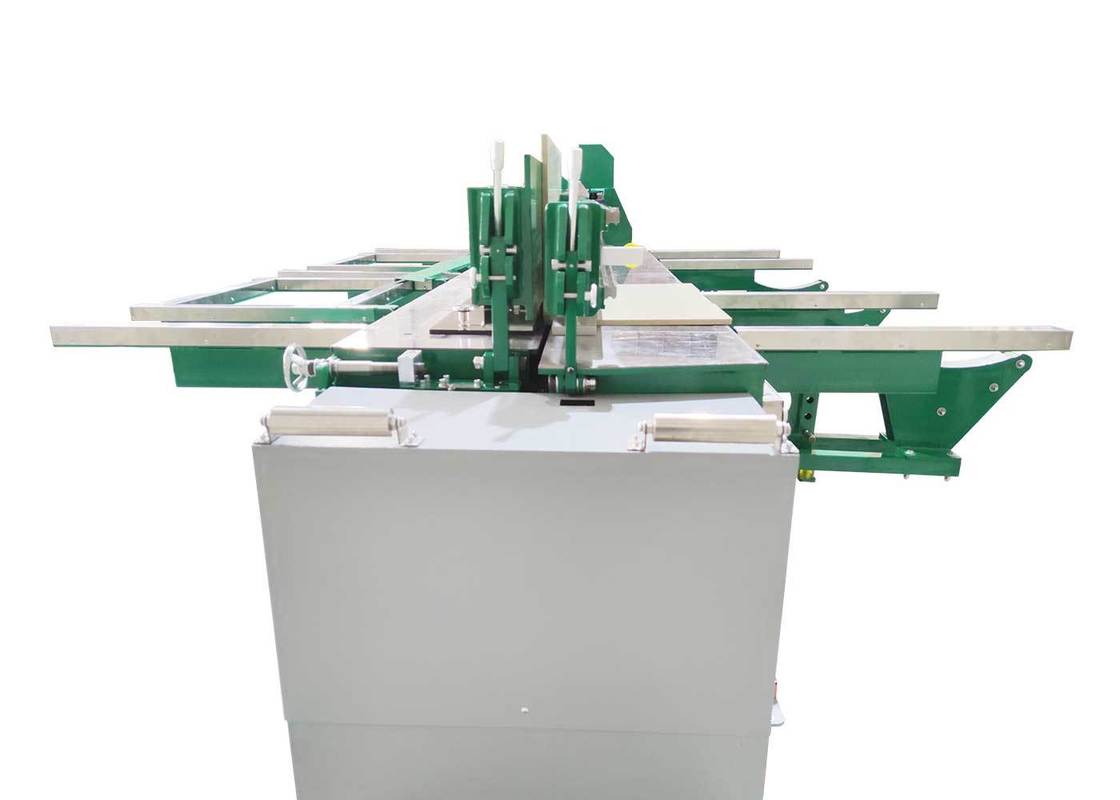

SWT - PH4000 Automatic Smart Operation Plastic Sheet Butt Fusion Welding Machine
Sheet Butt Fusion Welding Machine Application:
CNC automatic butt fusion machines, suitable for welding thermoplastic sheets.These machines can be easily operated both horizontally and vertically, which allow to perform different types of weld (horizontal, circular and vertical joints). CNC welders for joining thermoplastic sheets made of HDPE, PP, PVC, PVDF.
Sheet Butt Fusion Welding Machine Specification:
| Specification/Size |
SWT-PH4000 |
| Weldable sheet thickness(mm) |
3.0-30.0 |
| Max working length(mm) |
4000 |
| Roll circle diameter minimum(mm) |
450 |
| Air pressure(kg.f/cm²) |
6.0-8.0 |
| Energy source(m³/min) |
0.0062 |
| Rated voltage(V) |
380V |
| Rated current(A) |
13.6A |
| Heating Power(kW) |
8kW |
| Rolling Motor Power(kW) |
1.5kW |
| Heating mode |
Overall heating |
| Drum institutions motor power |
Optional |
| External dimensions(L*W*H) mm |
4850*1200*1200 |
| Packing dimensions(L*W*H )mm |
5000*1300*1450 |
| N.W KGS |
1550kg |
| G.W KGS |
1700kg |
Sheet Butt Fusion Welding Machine Features:
1.Versatile use:
Welding function and bending function are both available in our model.
2.Efficient and accurate:
Siemens control system and touch screen control mode make the control efficient and accurate.
3.Easy to use:
Our strong point are to design easy-to-use equipments, not complicated ones.
You can finish every function within 5 steps with our model.
4.Wide applicability:
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
5.Stable performance:
With most-to-up technology and top designers we successfully design and manufacture for customers.
The plates processed by our model have good-looking appearance and the angle is very strong.
6.Easy-to-maintain:
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.
After-Sales Service:
We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free.
