Hot Plate Pe Hdpe Pp Plc Butt Fusion Welding Equipment 380V 60Hz

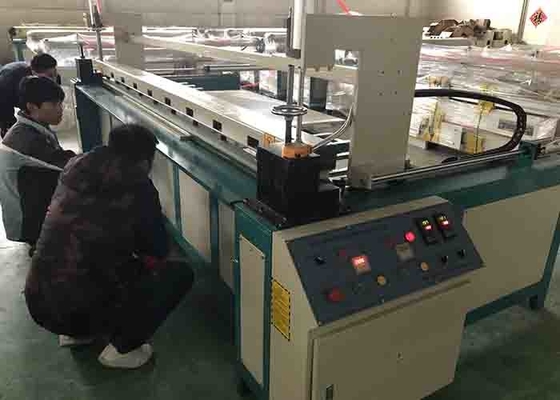

Large Image : Hot Plate Pe Hdpe Pp Plc Butt Fusion Welding Equipment 380V 60Hz

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH2000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$10800-$11700 set
Packaging Details:	Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets per week

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Rated Voltage:	380V 50/60Hz
Heating Mode:	Overall Heating	Packing Diamensions:	300013001450
Weldable Working Length:	2000mm	Roll Circle Diameter Minimum:	380mm
Rated Current:	9A	Rolling Motor Power:	1.5 KW
Warranty:	2 Years	CE Certification:	Yes
Highlight:	plc butt fusion welding equipment , 380v 60hz butt fusion welding equipment , plc butt fusion hdpe welding machine

SWT-PH2000 Hot Plate Pe Hdpe Butt Fusion Pp Welding Machine For Plastic

Sheet Butt Fusion Welding Machine Description:

The plastic sheet butt fusion machine is of our own design, with Germany technology applied. This model is accurate, efficient & easy-to-use, and can be used to weld in horizontal and circular position and perform joints as well.

Sheet Butt Fusion Welding Machine Technical Parameter:

	SWT-PH2000	SWT-PH3000	SWT-PH4000	SWT-PH5000	SWT-PH6000
Processing thickness(mm)	2-50	2-50	2-50	2-50	2-50
Processing length(mm)	2000	3000	4000	5000	6000
Roll circle diameter min(mm)	320	400	450	550	550
Air pressure(kg.f/cm2)	4to8	4to8	6to8	6to8	6to8
Energy source(m3/min)	0.0032	0.0052	0.0062	0.0068	0.0075
The rated voltage(V)	38o	380	38o	380	380
Rated current(A)	9	13.6	13.6	13.6	13.6
Heating mode	whole heating	whole heating	whole heating	whole heating	whole heating
Drum institutions(parts)	selectable	selectable	selectable	selectable	selectable
LengthWidthHeight(mm)	2550640960	370011001200	475012001120	575025001020	675025001020
suitable for material	PP PVC PVDF PPN PE

Sheet Butt Fusion Welding Machine Optional Accessories:

The Standard configuration machine have 2 functions:

1.welding line

2.Circular welding

Should be choose Rolling auxiliary tools if welding thick sheet and circle tank

Should be choose 90 degree welding tools if use two pcs sheet to mke 90 degree angle

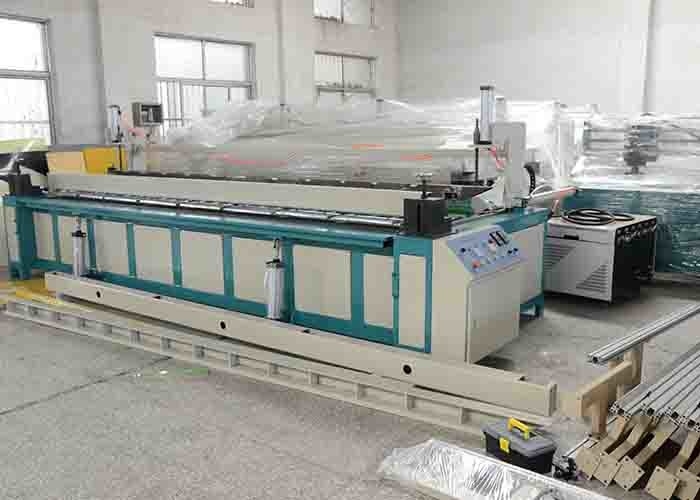

Hot Plate Pe Hdpe Pp Plc Butt Fusion Welding Equipment 380V 60Hz 0

Sheet Butt Fusion Welding Machine Include:

Sheet Butt Fusion Welding Machine Standard Configuration
NO.	Item	QTY
1	sheet butt fusion machine	1 set
2	tool box	1pcs
3	hexagon key	1set
4	screw driver	2pcs
5	wrench	1pcs
6	adjustable wrench	1pcs
7	coupling	10pcs
8	elbow	10pcs
9	plier	1pcs
10	heating element	4pcs
11	pedal	1pcs
12	temperature control	1pcs
13	air filter valve	1 set
14	hose pipe	10m
15	support	1set
16	triangle support	2pcs
17	steel pallet	1pcs
18	plywood case	1pcs

PS:

Please contact Clara, and she will send you additional heating tubes as gift after you confirm the order

About the Delivery:

We have sufficient stock can dispatch the machine to you immediately.

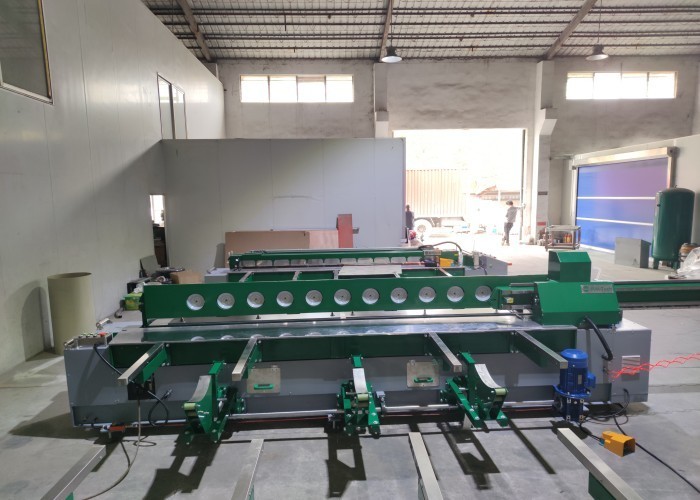

Hot Plate Pe Hdpe Pp Plc Butt Fusion Welding Equipment 380V 60Hz 1
