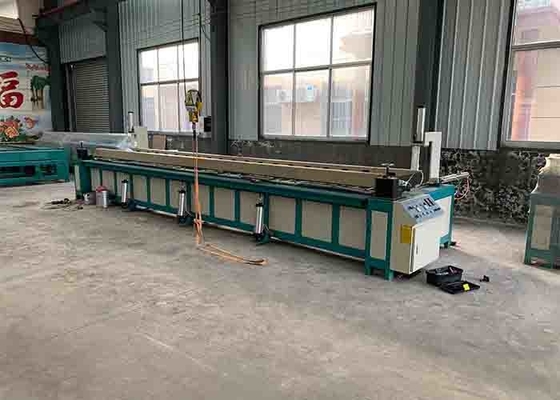

Automatic Tank Hdpe Siemens Plastic Sheet Welding Machine Butt Fusion

Large Image : Automatic Tank Hdpe Siemens Plastic Sheet Welding Machine Butt Fusion

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH3000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$12000-$13200 set
Packaging Details:	Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets per week

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Rated Voltage:	380V 50/60Hz
Heating Mode:	Overall Heating	Packing Diamensions:	390013001450
Weldable Working Length:	3000mm	Roll Circle Diameter Minimum:	400mm
Rated Current:	13.6A	Rolling Motor Power:	1.5 KW
Warranty:	2 Years	CE Certification:	Yes
Highlight:	380v 50hz plastic sheet welding machine , siemens plastic sheet welding machine , siemens hdpe sheet welding machine

SWT - PH3000 Automatic Plastic Tank Hdpe Sheet Butt Fusion Welding Machine

Sheet Butt Fusion Welder Brief Introduction:

SWT-PH3000 sheet butt fusion welder is suitable for welding thermoplastic sheets. It can be supported the welding method:
1. welding line
2. welding circular

Sheet Butt Fusion Welding Machine Specification:

	SWT-PH2000	SWT-PH3000
plate thickness(mm)	3-30	3-30
welding effective length(mm)	2000	3000
Minimum diameter(mm)	380	400
Energy source(M fand/min)	0.0032	0.0052
Rated voltage(V)	380	380
Heating method	whole heating	whole heating
Heating power	4KW	6KW
Winding motor power	1.5KW	1.5KW
Dimensions(mm)	285012001200	375012001200
Suitable material	PP PVC PVDF PPN PE etc
Scope of application	Electroplating, environmental protection_ chemical containers, sewage treatment, pipelines, ventilation systems, etc.

Siemens PLC Touch System Features:

1. We use Siemens PLC System, all function keys are concentrated on the screen. It can adjest the pressure according to different thickness of PP, PE, PVC sheet.

2. Operate in compliance with the DVS2207-1 and DVS2207-11 CNC/ TOUCH PANEL / HANDLE CONTROLLER

Automatic Tank Hdpe Siemens Plastic Sheet Welding Machine Butt Fusion 0

Our Advantages:

One-stop Shopping:	We focus on plastic welding/bending industry for over 18 years and we can produce equipments range includes butt fusion, fast bending, extrusion equipments and panel saw. OBT is also providing production lines for PP/PE/PVC sheet, hollow wall winding tube, plastic rod etc.
Reliable Quality	With most-to-up technology and top designers from Germany we successfully design and manufacture for customers, and our equipments are certified by SGS, BV, TüV.
Technical assistance	We have professional designers and engineers to meet your special requirements. Meanwhile, we'd like to provide training for our customers.

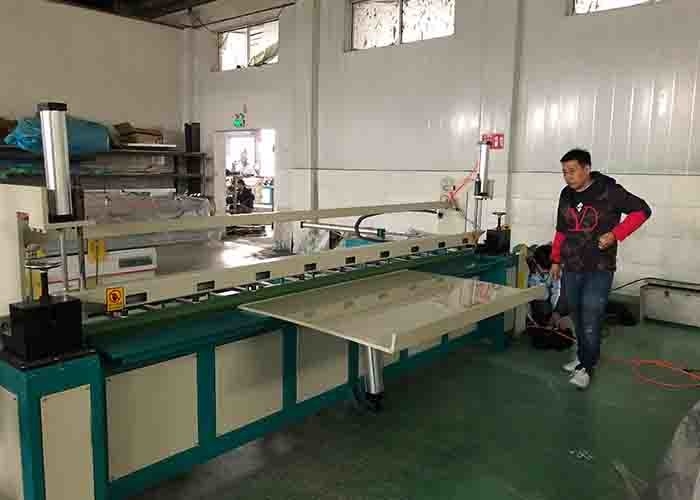

Sheet Butt Fusion Welding Machine Application:

Automatic Tank Hdpe Siemens Plastic Sheet Welding Machine Butt Fusion 1

Company Introduction:

Hebei Mingmai Technology Co., LTD (MM-Tech) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China.

Our main products: butt fusion machine, socket fusion machine, electrofusion machine, hot air welders, hot air welding machine, extrusion welders, geomembrane overlap wedge welders, band saw, cutting machine, & welding accessories.
