1.5KW Plastic Fusion Welding Equipment For Polypropylene PE PVC PVDF Sheet

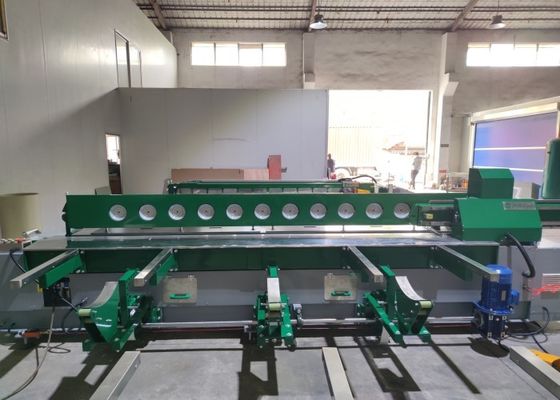

Large Image : 1.5KW Plastic Fusion Welding Equipment For Polypropylene PE PVC PVDF Sheet

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH4000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$12700-$13970 set
Packaging Details:	Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets per week

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welder	Rated Voltage:	380V 50/60Hz
Heating Mode:	Overall Heating	Packing Diamensions:	500013001450
Weldable Working Length:	4000mm	Roll Circle Diameter Minimum:	450mm
Rated Current:	13.6A	Rolling Motor Power:	1.5KW
CE Certification:	Yes	Warranty:	2 Years
Highlight:	1.5kw plastic fusion welding equipment , pvdf sheet plastic fusion welding equipment , 380v pp sheet welding machine

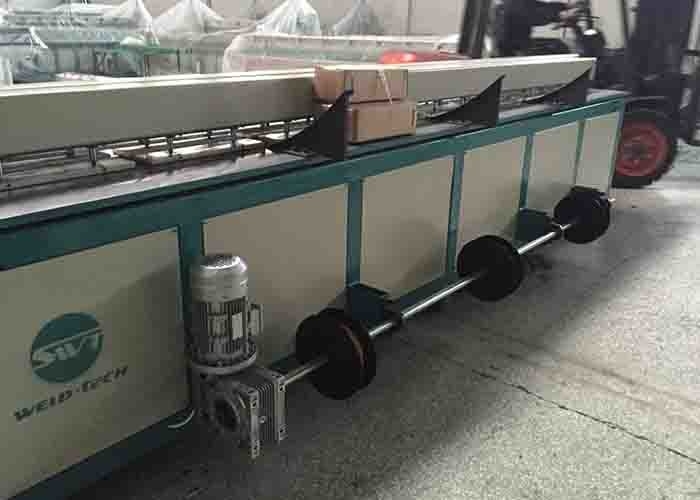

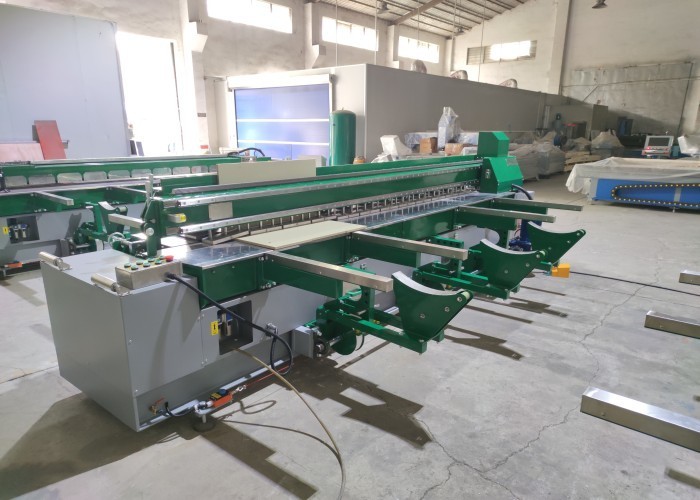

SWT-PH4000 Polypropylene PE PVC PVDF Plastic Sheet Butt Welding Machine

Sheet Butt Fusion Welder Introduction:

The SWT-PH4000 plastic sheet butt fusion welder's welding without welding seam without leakage, reduce your labor costs, it can improve work efficiency and save the plate.

It is suitable for PP,PE,PVDF,PVC, PPN material.

Sheet Butt Fusion Welder Parameters:

Type	PH2000	PH3000	PH4000	PH5000	PH6000
Sheet thickness(mm)	3-30	3-30	3-30	3-30	3-30
Effective length of weld(mm)	2000	3000	4000	5000	6000
Minimum diameter of winding circle(mm)	380	400	450	550	550
Gas pressure(kg.f/cm2)	4-8	4-8	6-8	6-8	6-8
Energy consumption of gas source(m³/min)	0.0032	0.0052	0.0062	0.0068	0.0075
Rated voltage(V)	380	380	380	380	380
Heating mode	Overall heating
heating power	4kw	6kw	8kw	10kw	12kw
Rolling motor power	1.5kw

Sheet Butt Fusion Welder Benifits:

1.The electric system is placed in electric cabinet, it's convenient for maintenance and check.

2.Press button control makes the operation easy and convenient.

3.The working panel's material is Q345 manganese, which is featured as non-being heated distortion; The platen material is aluminum.

Range of application:

Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.

1.5KW Plastic Fusion Welding Equipment For Polypropylene PE PVC PVDF Sheet 0

Welding Method & Optional Configuration:

1. welding line

2. welding circular

* LCD Touch(Siemens touch screen)

* Manual Botton

* Auxiliary Roll Tool
