PP PE 5000mm Thermoplastic Sheet Butt Welder And Rolling Machine
Sheet Butt Fusion Welder Brief Introduction:
CNC automatic butt fusion machines, suitable for welding thermoplastic sheets.These machines
can be easily operated both horizontally and vertically, which allow to perform different types of weld (horizontal, circular and vertical joints). CNC welders for joining thermoplastic sheets made of HDPE,
PP, PVC, PVDF.
Sheet Butt Fusion Welder Specification:
| Specification/Size |
SWT-PH5000 |
| Weldable sheet thickness(mm) |
3.0-30.0 |
| Max working length(mm) |
4000 |
| Rated voltage(V) |
380V |
| Drum institutions motor power |
Optional |
| External dimensions(L*W*H) mm |
5850*1200*1200 |
| Packing dimensions(L*W*H )mm |
6000*1300*1450 |
| N.W/G.W KGS |
1800kg |
| Heating Elements: Imported heating knife, the surface is coated with Teflon |
| Suitable Material: PP,PE,PVDF,PVC,PPN,etc. |

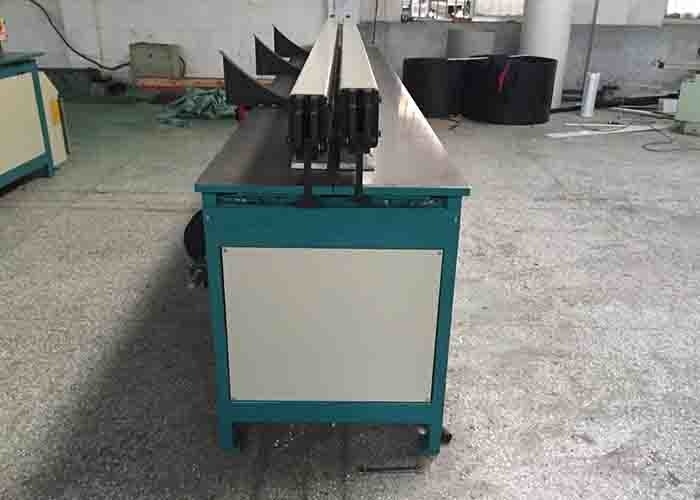

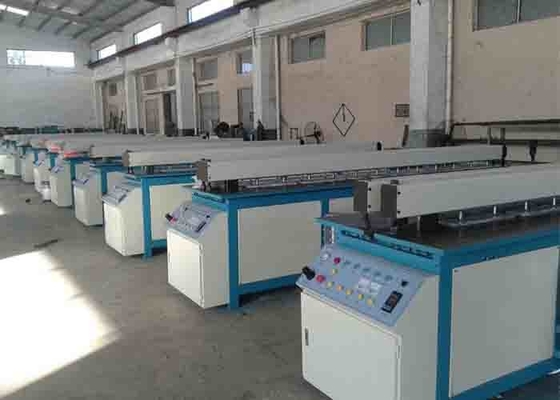

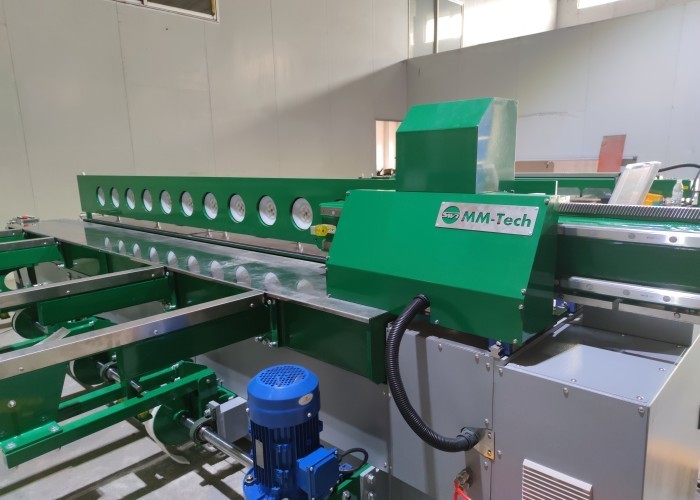

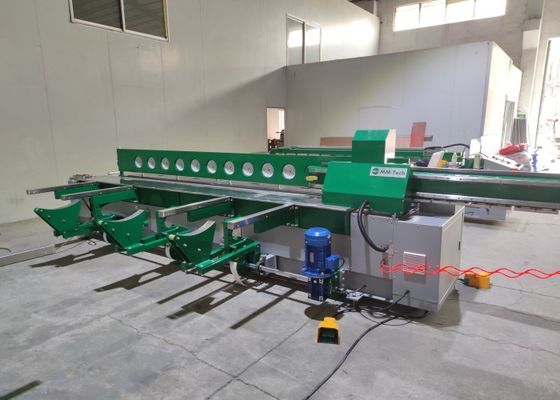

Sheet Butt Fusion Welder Image:
Sheet Butt Fusion Welder Features:
our patented design, plastic sheet bending and welding integrated machine.
1. Bending angle adjustable 10-95 °. suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…)
2. The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
3. Control system Siemens PLC, 7-inch color touch screen.
4. Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
Company Profile:
Hebei Mingmai Technology Co.,LTD (MM-Tech) isone of comprehensive manufacturer of
Thermoplastic Welding Equipment and anexperienced professional exporters in China.Our main products:butt fusion machine,socket fusion machine,electrofusion machine,hot air welders,hot air welding machine, extrusion welders,geomembrane overlap wedge welders,band saw,cutting machine,& welding accessories.
