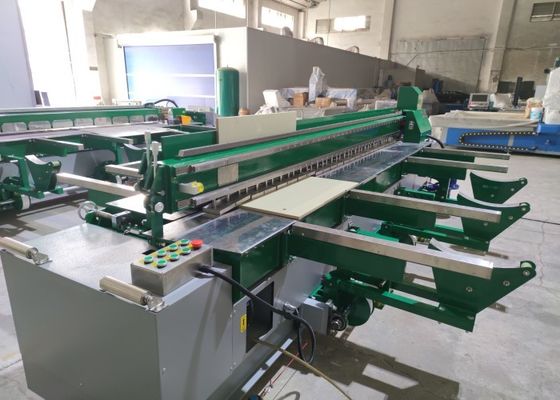

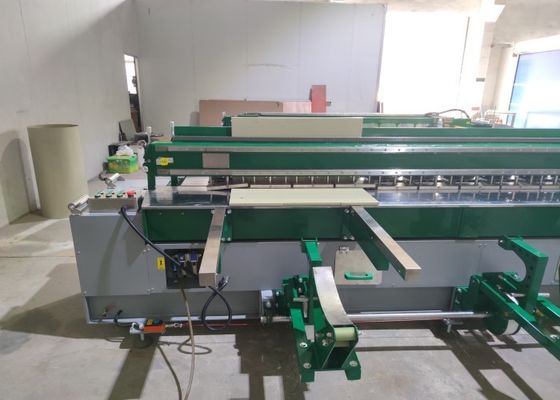

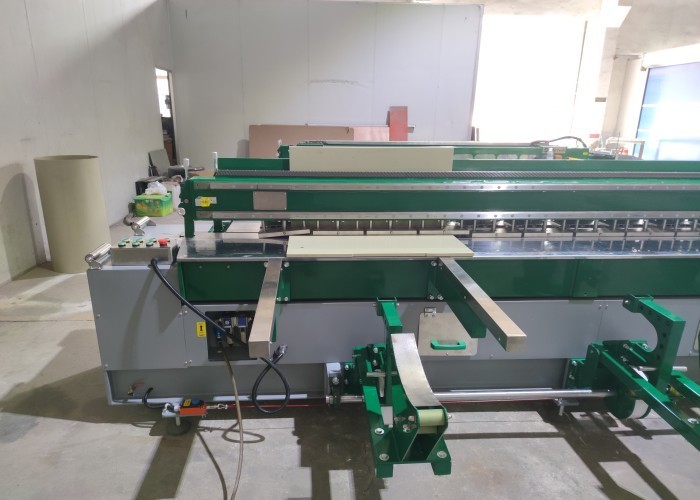

SWT - PH3000 Smart Operation with CE Certification PE Sheet Butt Fusion Welding Machine
Packaging & Delivery:
Selling Units:Single item
Single package size:390*130*145 cm
Single gross weight:1500 kg
Package Type:Wooden Box
Lead Time:
-
| Quantity(Sets) |
1 - 10 |
>10 |
| Est. Time(days) |
30 |
To be negotiated |
Sheet Butt Fusion Welding Machine Application:
Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.
Sheet Butt Fusion Welding Machine Specification:
| Specification/Size |
SWT-PH3000 |
| Weldable sheet thickness(mm) |
3.0-30.0 |
| Max working length(mm) |
3000 |
| Roll circle diameter minimum(mm) |
400 |
| Air pressure(kg.f/cm²) |
4.0-8.0 |
| Energy source(m³/min) |
0.0052 |
| Rated voltage(V) |
380V |
| Rated current(A) |
13.6A |
| Heating Power(kW) |
6kW |
| Rolling Motor Power(kW) |
1.5kW |
| Heating mode |
Overall heating |
| Drum institutions motor power |
Optional |
| External dimensions(L*W*H) mm |
3750*1200*1200 |
| Packing dimensions(L*W*H )mm |
3900*1300*1450 |
| N.W KGS |
1350kg |
| G.W KGS |
1500kg |
Sheet Butt Fusion Welding Machine Features:
1. Versatile use:
Welding function and bending function are both available in our model.
2. Efficient and accurate:
Siemens control system and touch screen control mode make the control efficient and accurate.
3. Easy to use:
Our strong point are to design easy-to-use equipments, not complicated ones.
You can finish every function within 5 steps with our model.
4. Wide applicability:
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),
with material thickness ranges from 3 mm to 30 mm. Welding thickness can up to 50 or 60mm according to customers' request.
5. Stable performance:
With most-to-up technology and top designers we successfully design and manufacture for customers.
The plates processed by our model have good-looking appearance and the angle is very strong.
6. Easy-to-maintain:
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.
