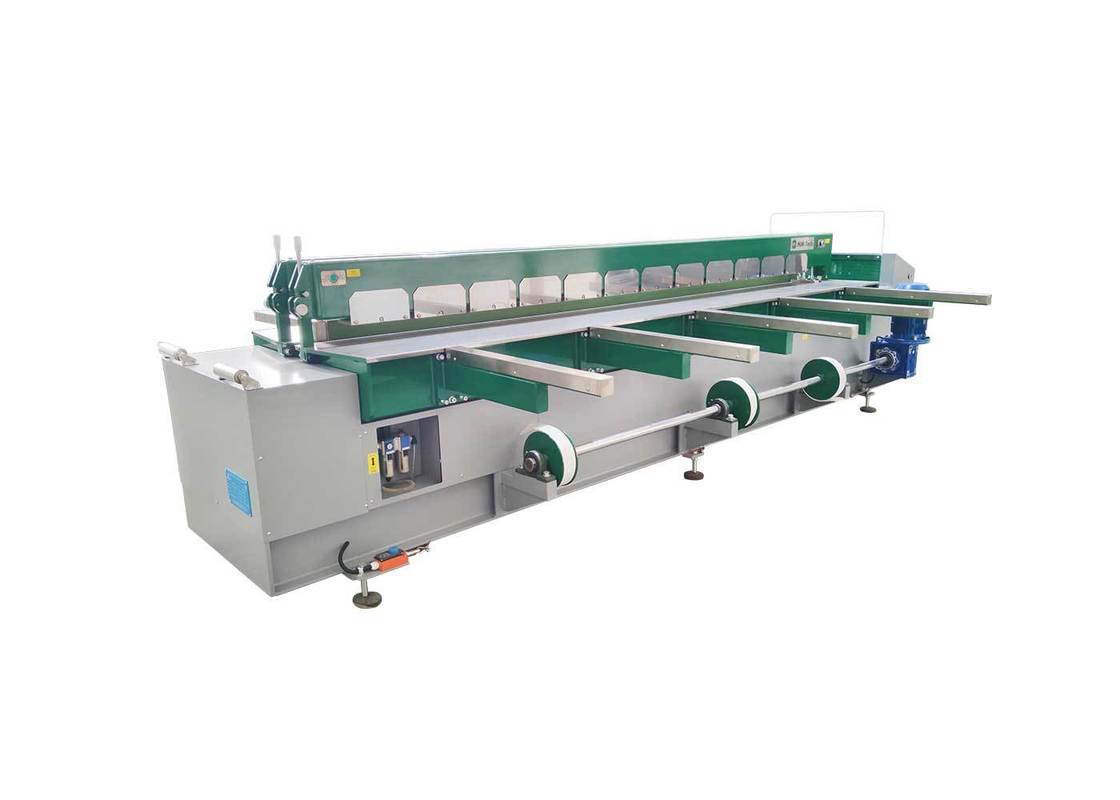

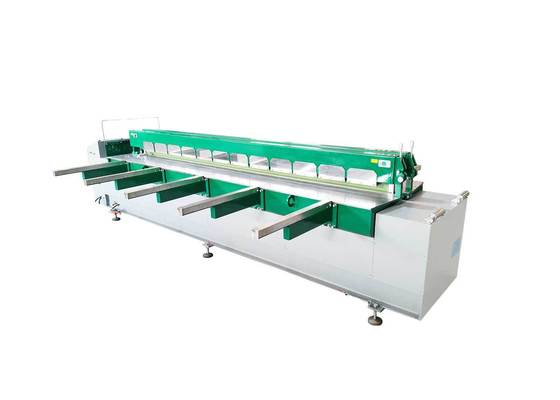

Buttfusion Polyethylene 30mm Plastic Sheet Welding Machine

Large Image : Buttfusion Polyethylene 30mm Plastic Sheet Welding Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH4000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$12,500-16,500/set
Packaging Details:	1 Plywood Case
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal, Credit Card
Supply Ability:	1200 sets per week

Contact Now

Detailed Product Description

Max Workable Length:	4000mm	Sheet Thickness To Weld:	3-30mm
Roll Circle Diameter Minimum:	450mm	Air Pressure:	6-8kg.f/cm²
Rated Voltage:	380V	Frequency:	50/60Hz
Rated Current:	13.6A	Heating Power:	8kW
Rolling Motor Power:	1.5kW	Heating Model:	Overall Heating
Highlight:	buttfusion plastic sheet welding machine , 30mm plastic sheet welding machine , 30mm butt fusion welding machine

Polyethylene Sheet Butt Fusion Welding Machine Sheet Welding

Plastic sheet butt fusion welding machine for biotrackling filter systems, bioreducers, biotracklers, biofreduction systems.
Plastic Sheet Butt Fusion Welding Machine for Polypropylene Absorption, Acid Fumes, Exhaust Gas Scrubber SWT-PH4000
PE plastic sheet butt welding machine joining two plastic sheets.
Polyethylene Sheet Butt Fusion Welder for Plastic Capacities, Septic Tanks

Polyethylene Sheet Butt Fusion Welding Machine Specifications

Model	SWT-PH4000
Max welding length	4000mm
Sheet thickness to weld	3-30mm
Roll circle diameter minimum	450mm
Air pressure	6-8kg.f/cm²
Rated voltage	380V
Frequency	50/60Hz
Rated current	13.6A
Heating power	8kW
Rolling motor power	1.5kW

Polyethylene Sheet Butt Fusion Welding Machine Application

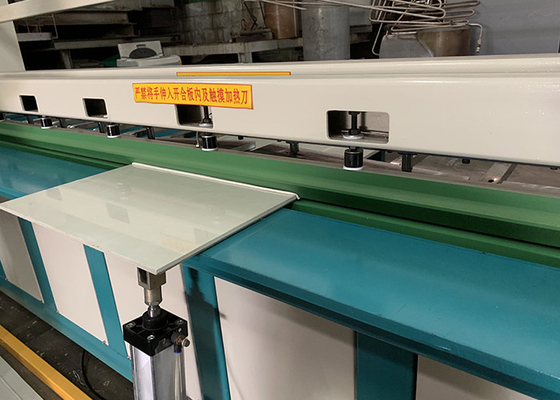

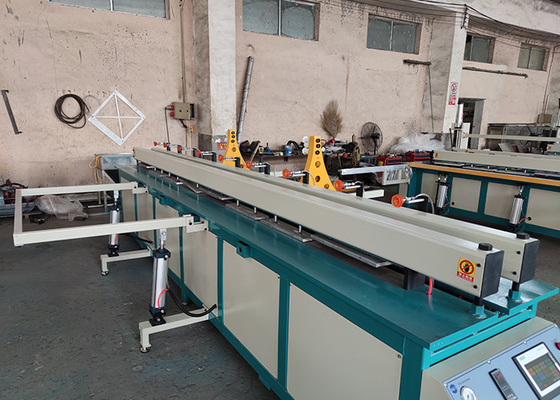

Buttfusion Polyethylene 30mm Plastic Sheet Welding Machine 0

Our model is suitable for all kinds of thermo plastic sheets (PP, PE, HDPE, PVDF, PVC, PPN),

With material thickness ranges from 3mm to 30mm. The thickness of the weld can up to 50 or 60mm according to customer's request.

Polyethylene Sheet Butt Fusion Welding Machine Package

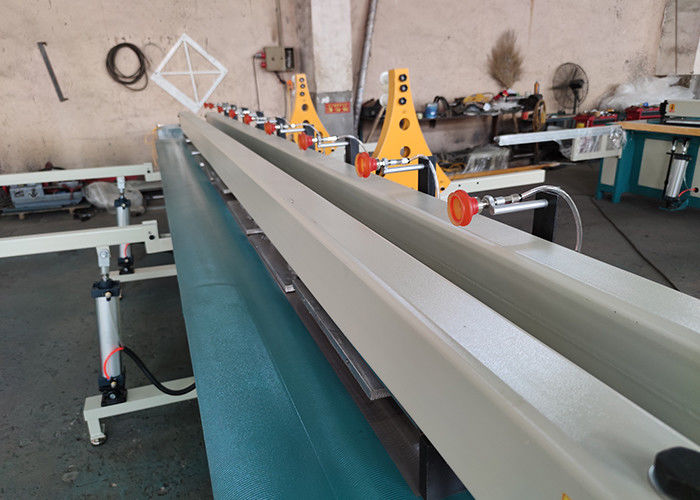

Buttfusion Polyethylene 30mm Plastic Sheet Welding Machine 1
