SWT-PH6000 HDPE Sheet Butt Fusion Welding Machine For Making Big Tanks For Salmon Farming in Norway

SWT-PH6000 HDPE Sheet Butt Fusion Welding Machine For Making Big Tanks For Salmon Farming in Norway
SWT-PH6000 HDPE Sheet Butt Fusion Welding Machine For Making Big Tanks For Salmon Farming in Norway SWT-PH6000 HDPE Sheet Butt Fusion Welding Machine For Making Big Tanks For Salmon Farming in Norway

Large Image :  SWT-PH6000 HDPE Sheet Butt Fusion Welding Machine For Making Big Tanks For Salmon Farming in Norway

Product Details:
Place of Origin: Hebei,China
Brand Name: MM-TECH
Certification: CE, ISO
Model Number: SWT-PH6000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD37,500.00 - USD47,500.00 per set
Packaging Details: Wooden Box
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500 sets per year
Contact Now
Detailed Product Description
Product Name: Sheet Butt Fusion Welding Machine Voltage: 380V
Welding Thickness: 3-50 Mm Max Working Length: 6000 Mm
Welding Materials: PP, HDPE, PVC ,PVDF Function: Horizontal Welding, Circular Welding, 90° Vertical Welding By Two Sheets
Frequency: 50/60Hz Phase: 3P
Certificate: CE Application: Fire Trucks, Swimming Pools, Waste Water Treatment, Etc
Highlight:

HDPE sheet welding machine for tanks

,

butt fusion welding machine for salmon farming

,

plastic sheet welder with HDPE compatibility

HDPE Sheet Butt Fusion Welding Machine Application:

Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc

HDPE Sheet Butt Fusion Welding Machine Specification:

Model SWT-PH6000
Weldable sheet thickness(mm) 3.0-50.0
Max working length(mm) 6000
Roll circle diameter minimum(mm) 600
Air pressure(kg.f/cm²) 6.0-8.0
Energy source(m³/min) 0.0032
Rated voltage(V) 380V
Rated current(A) 23A
Heating Power(kW) 11kW
Rolling Motor Power(kW) 3kW

HDPE Sheet Butt Fusion Welding Machine Features:

  1. Our machine is suitable for all types of thermo plastic sheet (PP, HDPE, HDPE, PVDF, PVC), with welding thickness 3-50mm.
  2. Our machine support horizontal welding, circular welding and 90° vertical welding by two sheets.

Application:

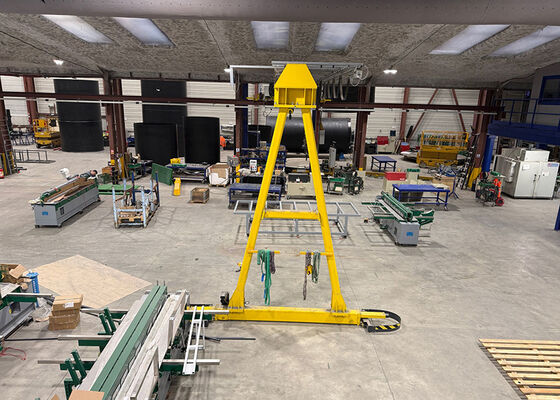

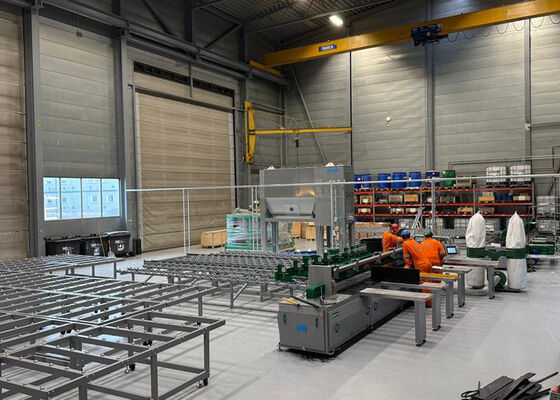

SWT-PH6000 HDPE Sheet Butt Fusion Welding Machine For Making Big Tanks For Salmon Farming in Norway 0

After-Sales Service:

We can provide free training service to our customers at our factory.

We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.
