6M Sheet Butt Fusion Welding Machine For Fabricating HDPE Tanks For Salmon Farming Under Sea in Norway

Large Image : 6M Sheet Butt Fusion Welding Machine For Fabricating HDPE Tanks For Salmon Farming Under Sea in Norway

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE, ISO
Model Number:	SWT-PH6000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD37,500.00 - USD47,500.00 per set
Packaging Details:	Wooden Box
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 sets per year

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Voltage:	380V
Frequency:	50/60Hz	Phase:	3P
Welding Thickness:	3-50 Mm	Max Working Length:	6000 Mm
Welding Materials:	PP, HDPE, PVC ,PVDF	Function:	Horizontal Welding, Circular Welding, 90° Vertical Welding By Two Sheets
Certificate:	CE	Application:	Fire Trucks, Swimming Pools, Waste Water Treatment, Etc
Highlight:	6M HDPE sheet welding machine , butt fusion machine for salmon farming , underwater HDPE tank welding machine

Sheet Butt Fusion Welding Machine Application:

Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc

Sheet Butt Fusion Welding Machine Specification:

Model	SWT-PH6000
Weldable sheet thickness(mm)	3.0-50.0
Max working length(mm)	6000
Roll circle diameter minimum(mm)	600
Air pressure(kg.f/cm²)	6.0-8.0
Energy source(m³/min)	0.0032
Rated voltage(V)	380V
Rated current(A)	23A
Heating Power(kW)	11kW
Rolling Motor Power(kW)	3kW

Sheet Butt Fusion Welding Machine Features:

Our machine is suitable for all types of thermo plastic sheet (PP, HDPE, HDPE, PVDF, PVC), with welding thickness 3-50mm.
Our machine support horizontal welding, circular welding and 90° vertical welding by two sheets.

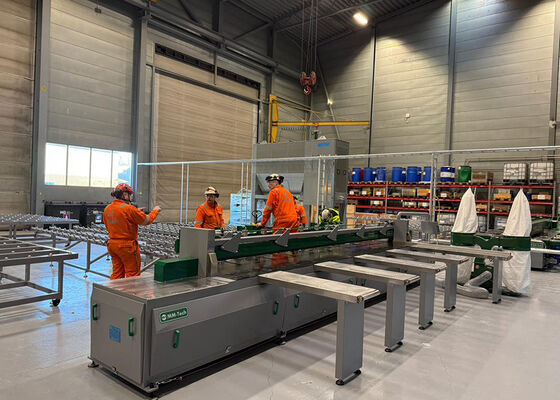

Application:

6M Sheet Butt Fusion Welding Machine For Fabricating HDPE Tanks For Salmon Farming Under Sea in Norway 0

After-Sales Service:

We can provide free training service to our customers at our factory.

We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.
