6M Plastic Sheet Butt Welder For Fabricating Tanks With Black UV-Resistant HDPE Sheet

Large Image : 6M Plastic Sheet Butt Welder For Fabricating Tanks With Black UV-Resistant HDPE Sheet

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE, ISO
Model Number:	SWT-PH6000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD37,500.00 - USD47,500.00 per set
Packaging Details:	Wooden Box
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 sets per year

Contact Now

Detailed Product Description

Product Name:	Sheet Butt Fusion Welding Machine	Voltage:	380V
Frequency:	50/60Hz	Phase:	3P
Welding Thickness:	3-50 Mm	Max Working Length:	6000 Mm
Welding Materials:	PP, HDPE, PVC ,PVDF	Function:	Horizontal Welding, Circular Welding, 90° Vertical Welding By Two Sheets
Certificate:	CE	Application:	Fire Trucks, Swimming Pools, Waste Water Treatment, Etc
Highlight:	6M plastic sheet welder for tanks , UV-resistant HDPE sheet welder , plastic tank fabrication welding machine

6M Plastic Sheet Butt Welder Market Sector

Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc

6M Plastic Sheet Butt Welder Specification:

Model	SWT-PH6000
Weldable sheet thickness(mm)	3.0-50.0
Max working length(mm)	6000
Roll circle diameter minimum(mm)	600
Air pressure(kg.f/cm²)	6.0-8.0
Energy source(m³/min)	0.0032
Rated voltage(V)	380V
Rated current(A)	23A
Heating Power(kW)	11kW
Rolling Motor Power(kW)	3kW

6M Plastic Sheet Butt Welder Features:

Our machine is suitable for all types of thermo plastic sheet (PP, HDPE, HDPE, PVDF, PVC), with welding thickness 3-50mm.
Our machine support horizontal welding, circular welding and 90° vertical welding by two sheets.

6M Plastic Sheet Butt Welder Application:

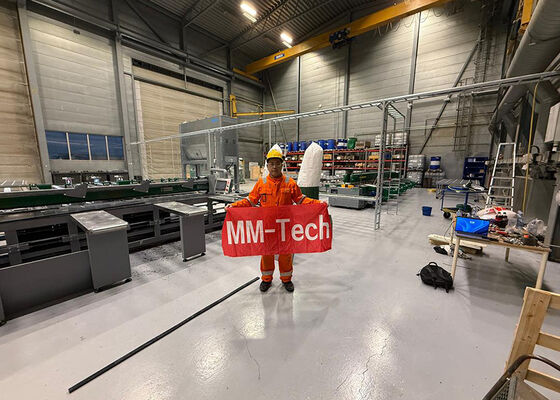

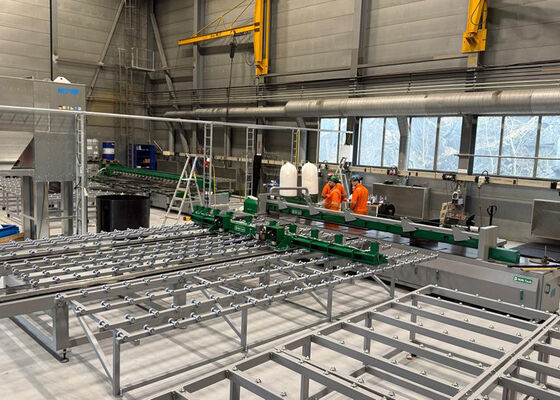

6M Plastic Sheet Butt Welder For Fabricating Tanks With Black UV-Resistant HDPE Sheet 0

After-Sales Service:

We can provide free training service to our customers at our factory.

We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.
